M50-491 Series

Catalog

12+12 POS. MALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Features	Fastening Type	Mounting Type	Insulation Material	Number of Rows [custom]	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination

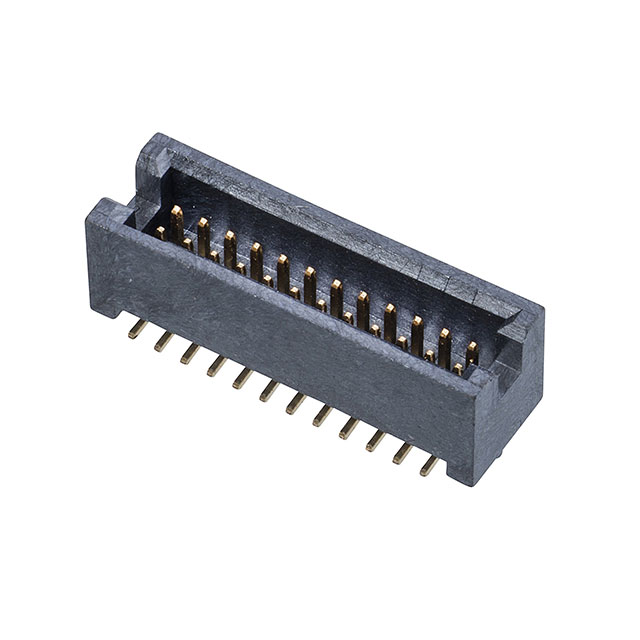

Harwin Inc. M50-4911245	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	24	-40 C	105 ░C	Solder

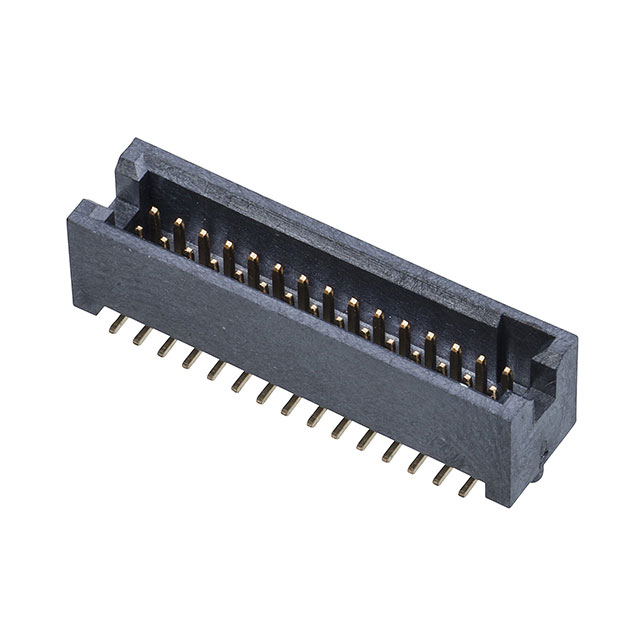

Harwin Inc. M50-4911545	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	30	-40 C	105 ░C	Solder

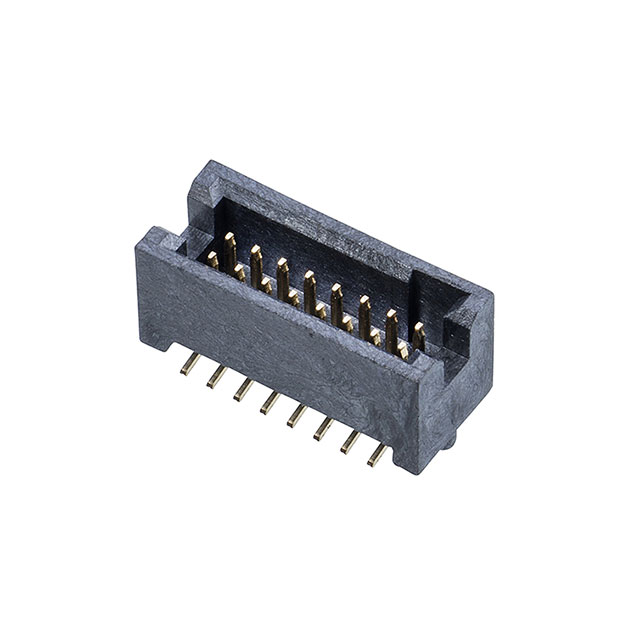

Harwin Inc. M50-4910845	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	16	-40 C	105 ░C	Solder

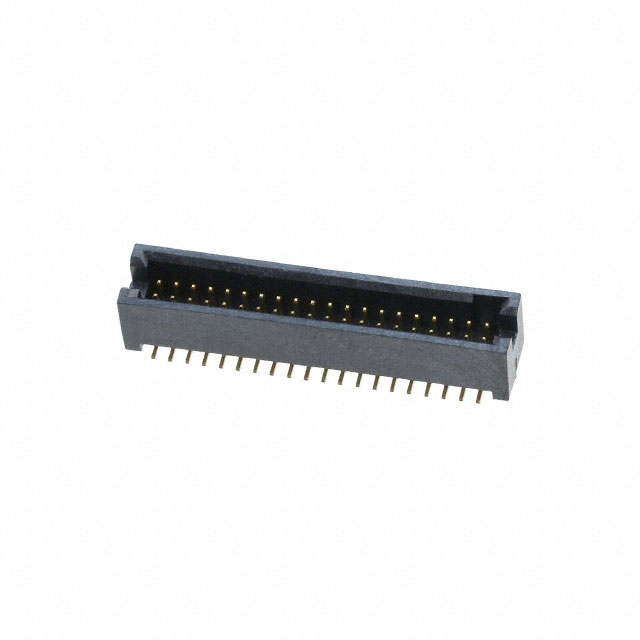

Harwin Inc. M50-4912045	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	40	-40 C	105 ░C	Solder

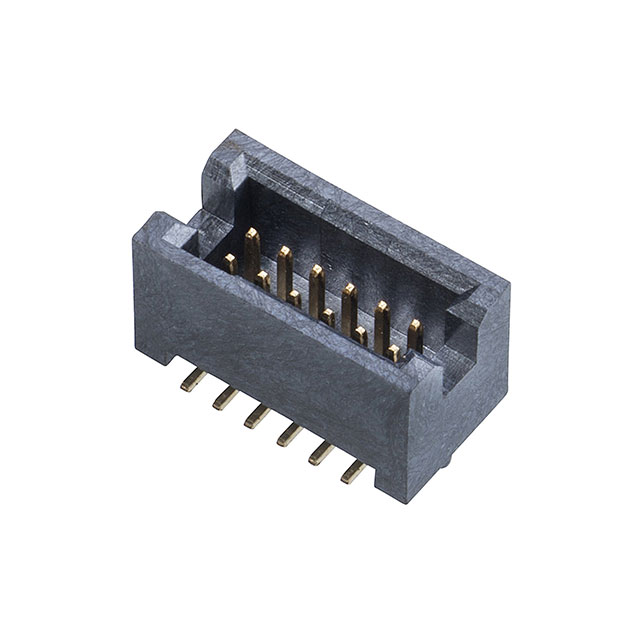

Harwin Inc. M50-4910645	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	12	-40 C	105 ░C	Solder
Harwin Inc. M50-4910545R	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	10	-40 C	105 ░C	Solder

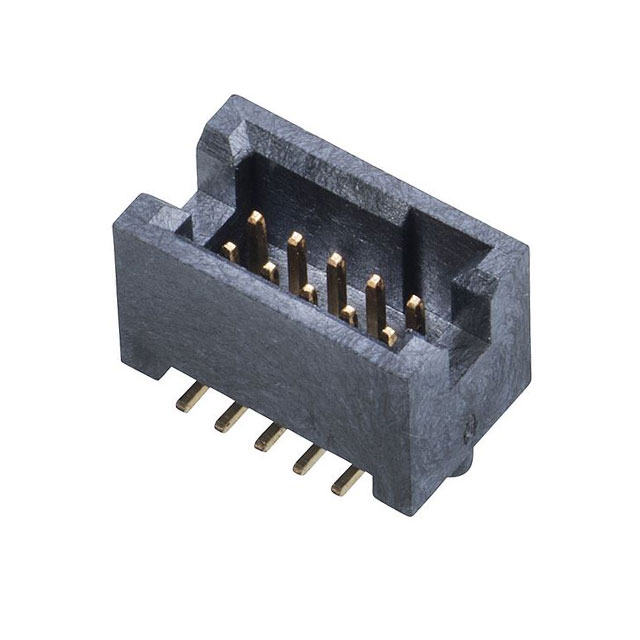

Harwin Inc. M50-4910545	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	10	-40 C	105 ░C	Solder

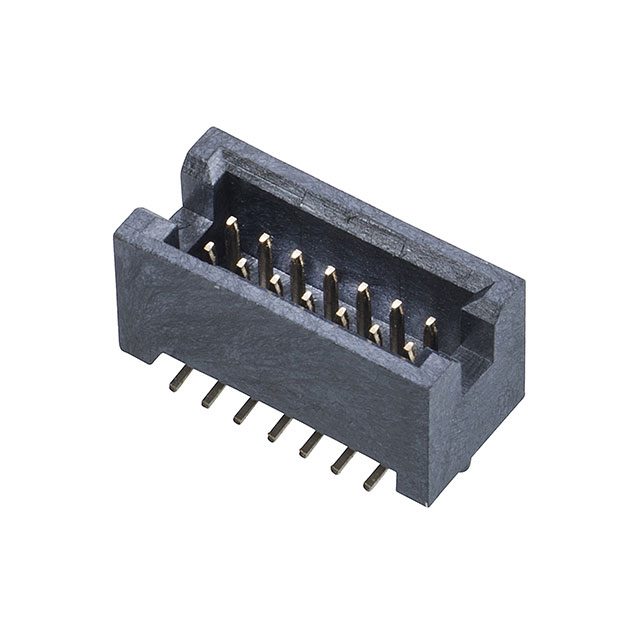

Harwin Inc. M50-4910745	6.5 mm	5.69 mm	0.224 in	All	Square	1.27 mm	0.05 in	Male Pin	Black	Phosphor Bronze	UL94 V-0	Flash	Header	Gold	Board Guide	Push-Pull	Surface Mount	Liquid Crystal Polymer (LCP)	2	Shrouded - 4 Wall	0.05 in	1.27 mm	14	-40 C	105 ░C	Solder
