NPTC121 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

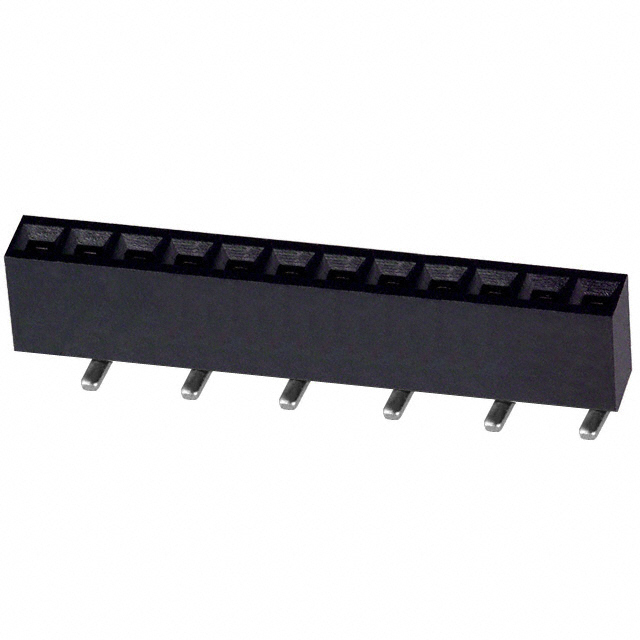

CONN HDR 12POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Connector Type | Fastening Type | Contact Type | Termination | Number of Rows | Number of Positions Loaded | Material Flammability Rating | Number of Positions | Voltage Rating | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Post | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Header Top or Bottom Entry | Push-Pull | Female Socket | Solder | 1 | All | UL94 V-0 | 12 | 250 V | 0.1 " | 2.54 mm | Surface Mount | 0.28 in | 7.1 mm | Tin | 3 A | -40 C | 105 ░C | |
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Header Top or Bottom Entry | Push-Pull | Female Socket | Solder | 1 | All | UL94 V-0 | 12 | 250 V | 0.1 " | 2.54 mm | Surface Mount | 0.28 in | 7.1 mm | Tin | 3 A | -40 C | 105 ░C | Black |
