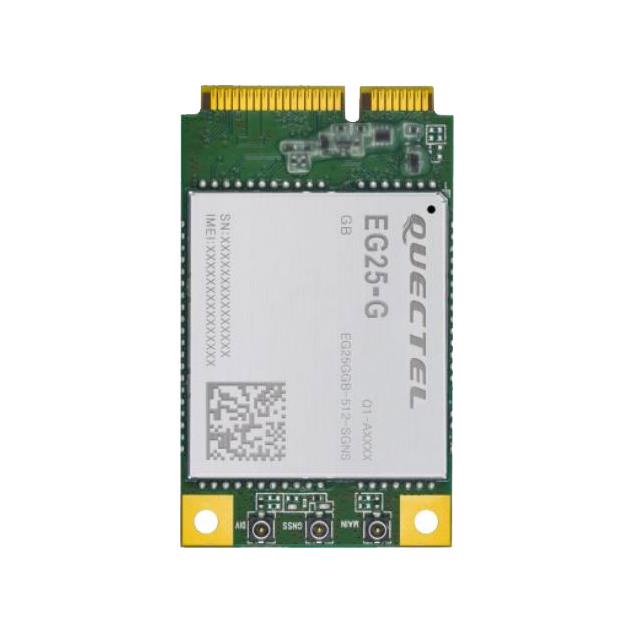

EG25 Series
Manufacturer: Quectel
Beta
⌘K
CELLULAR MODULE, GSM, LTE CAT 4, LTE-FDD, LTE-TDD, WCDMA, 3.3V TO 4.3V, 29MM X 32MM X 2.4MM
| Part | Sensitivity | Protocol | Package / Case | Data Rate | Power - Output | RF Family/Standard | Serial Interfaces | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part | Current - Receiving | Current - Transmitting | Antenna Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | -110.5 dBm | EDGE GPRS GSM LTE UMTS WCDMA | Module | 150 Mbps | 33 dBm | Cellular | I2C PCM UART USB | 3.6 V | 3 V | MDM9207-0 | 35 mA | 35 mA | Antenna Not Included | 75 ░C | -35 °C | Card Edge |
 Quectel | Module | I2C PCM UART USB | 3.6 V | 3 V | MDM9207-0 | Antenna Not Included | 75 ░C | -35 °C | Card Edge | |||||||
 Quectel | -110.5 dBm | EDGE GPRS GSM LTE UMTS WCDMA | Module | 150 Mbps | 33 dBm | Cellular | I2C PCM UART USB | 3.6 V | 3 V | 35 mA | 35 mA | Antenna Not Included | 75 ░C | -35 °C | Card Edge | |
 Quectel | Module | I2C PCM UART USB | 3.6 V | 3 V | MDM9207-0 | Antenna Not Included | 75 ░C | -35 °C | Card Edge |
