EV Series

Catalog

CHARGE CONTROLLERS EV-CC-AC1-M3-CC-SER PCB -

Part	Accessory Type	For Use With/Related Products	Style	Color	Wire Gauge	Shielding	Number of Conductors [custom]	Number of Conductors [custom]	2nd Connector	1st Connector	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Current Rating (Amps)	Wire Gauge	Length	Length	Region Utilized
Phoenix Contact 1622460	Cable - Connector Spring Clamp	Charging Stations
Phoenix Contact 1627365			Male Plug to Leads	Black	14.5 AWG 20 AWG	Unshielded	5	2	Cable	IEC 62196-2 (Type 2)	-40 C	50 °C	20A 2A	30 VAC 480 VAC

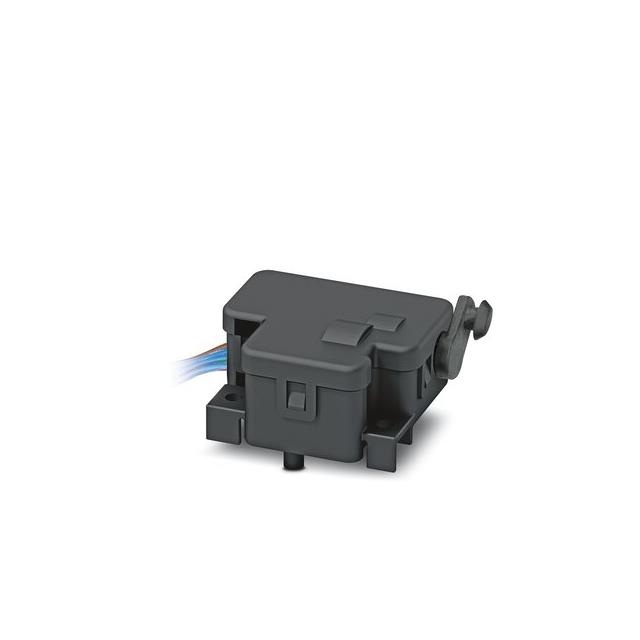

Phoenix Contact 1622317	Actuator	CHARX Control Modular
Phoenix Contact 1627136			Male Plug to Female Plug	Black		Unshielded	5	2	IEC 62196-2 (Type 2)	IEC 62196-2 (Type 2)	-40 C	50 °C		30 VAC 480 VAC	2 A 32 A	10 AWG 20 AWG	4 m	13.12 ft

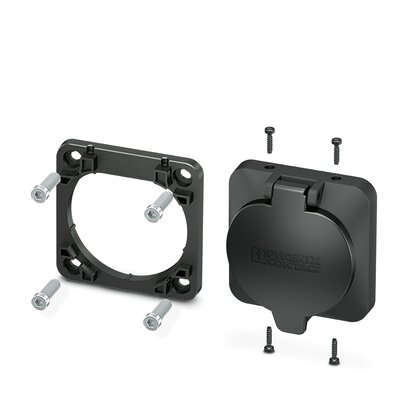

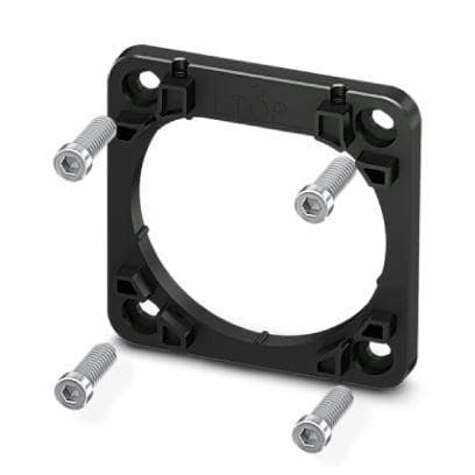

Phoenix Contact 1627637	Panel Mount Frame	Convenience Outlet																	Poland
Phoenix Contact 1624129	Actuator	CHARX Control Modular
Phoenix Contact 1623505			Male Plug to Leads	Black		Unshielded	5	2	Cable	IEC 62196-2 (Type 2)	-40 C	50 °C		30 VAC 480 VAC	2 A 32 A	10 AWG 20 AWG	4 m	13.12 ft

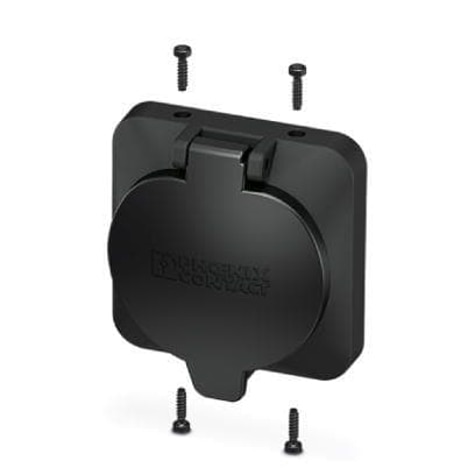

Phoenix Contact 1627635	Protective Cover	Convenience Outlet																	Poland
Phoenix Contact 1623935	Protective Cover	Convenience Outlet																	Germany
