TUHW-V88W Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

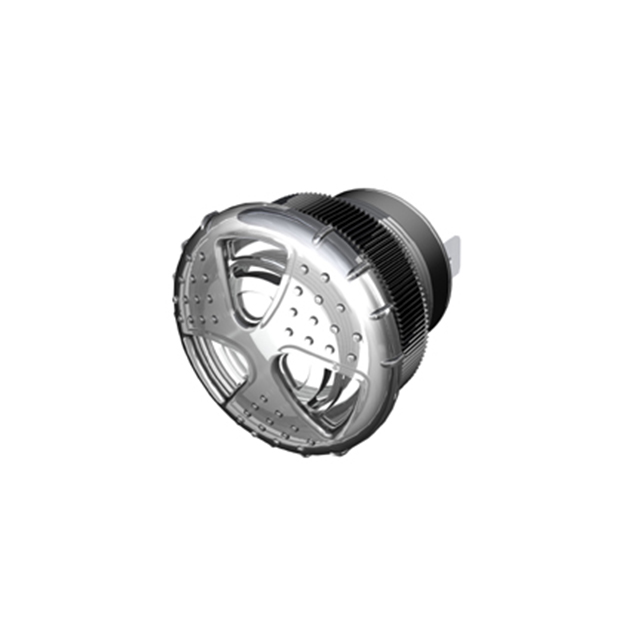

BUZZER 35.81MM PNL MNT
| Part | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Current - Supply [Max] | Current - Supply [Min] | Sound Pressure Level (SPL) | Input Type | Voltage Range [Max] | Voltage Range [Min] | Termination | Termination | Termination | Operating Mode | Driver Circuitry | Ingress Protection | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Approval Agency | Port Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Panel Mount | 1.41 in | 35.81 mm | 125 mA | 65 mA | 103 dB | DC | 30 V | 9 V | Quick Connect Tab | 0.25 " | 6.35 mm | Slow Warble | Indicator Internally Driven | IP68 - Dust Tight Waterproof | 3 kHz | 1.25 " | 31.75 mm | UL UR | Top |
 Floyd Bell Inc | Panel Mount | 1.41 in | 35.81 mm | 125 mA | 65 mA | 103 dB | DC | 30 V | 9 V | Quick Connect Tab | 0.25 " | 6.35 mm | Warble Fast | Indicator Internally Driven | IP68 - Dust Tight Waterproof | 3 kHz | 1.25 " | 31.75 mm | UL UR | Top |
