CEE0164 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

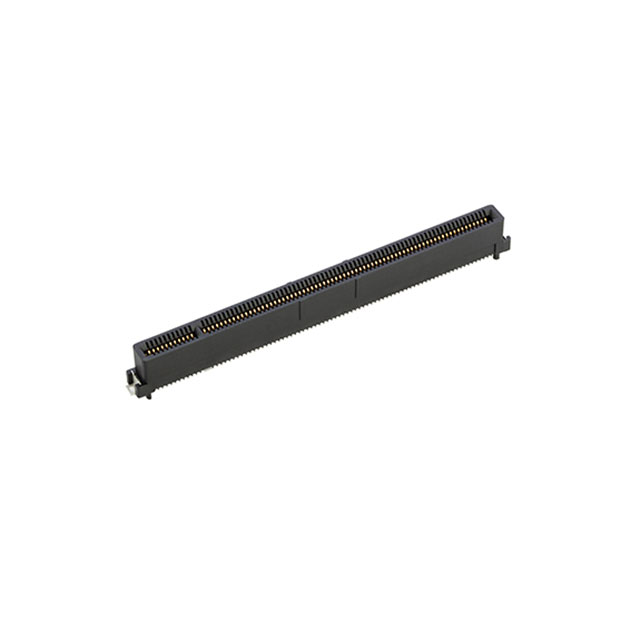

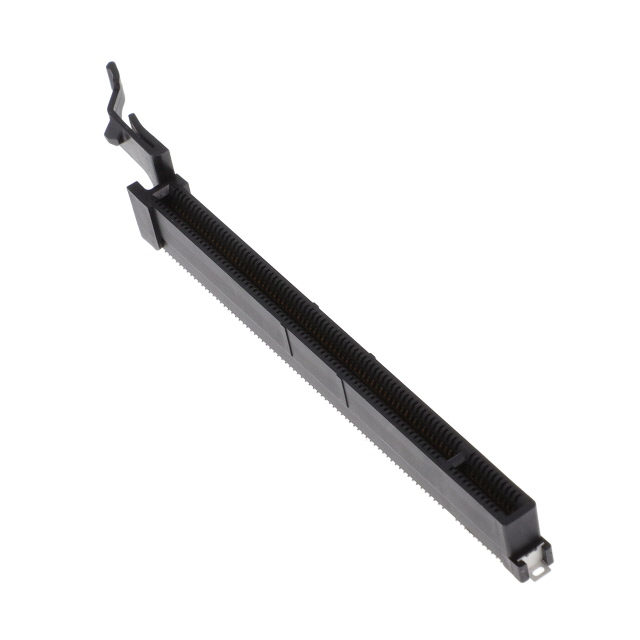

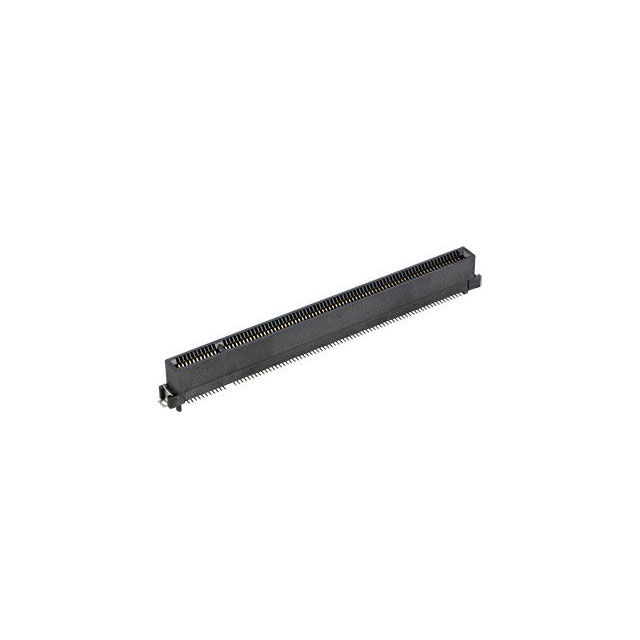

CONN PCI EXP FMALE 164POS 0.039
| Part | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Material - Insulation | Number of Rows | Pitch [x] | Pitch [x] | Termination | Features | Read Out | Color | Contact Finish | Card Thickness | Card Thickness | Gender | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions | Mounting Type | Contact Type | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 71 | 11 | Thermoplastic | 2 | 0.039 in | 1 mm | Solder | Board Guide Solder Retention | Dual | Black | Gold | 0.062 in | 1.57 mm | Female | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | Copper Alloy | 164 | Surface Mount | Cantilever | PCI Express™ |
 Amphenol ICC (FCI) | 71 | 11 | Thermoplastic Halogen Free | 2 | 0.039 in | 1 mm | Solder | Board Guide Solder Retention | Dual | Black | Gold | 0.062 in | 1.57 mm | Female | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | Copper Alloy | 164 | Surface Mount | Cantilever | PCI Express™ |
 Amphenol ICC (FCI) | 71 | 11 | Thermoplastic | 2 | 0.039 in | 1 mm | Solder | Board Guide Board Lock Pick and Place Solder Retention | Dual | Black | Gold | 0.062 in | 1.57 mm | Female | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | Copper Alloy | 164 | Surface Mount | Cantilever | PCI Express™ |
