CQB150W14 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 150W 12-160VIN 28VOUT 5.4A

Part	Type	Voltage - Input (Max) [Max]	Applications	Package / Case	Standard Number	Mounting Type	Approval Agency	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Supplier Device Package	Voltage - Input (Min) [Min]	Features	Number of Outputs	Power (Watts)
Cincon Electronics Co. LTD CQB150W14-72S28	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	5.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	28 V	Quarter Brick	12 V	Remote On/Off	1	151 W
Cincon Electronics Co. LTD CQB150W14-72S28-C-B	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	5.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	28 V	Quarter Brick	12 V	Remote On/Off	1	151 W
Cincon Electronics Co. LTD CQB150W14-72S54N	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active Low Enable	105 C	-40 °C	4.2 kV	2.8 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90.5 %	54 V	Quarter Brick	12 V	Remote On/Off	1	151 W

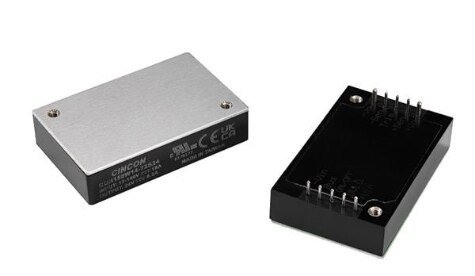

Cincon Electronics Co. LTD CQB150W14-72S05N-B	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active Low Enable	105 C	-40 °C	4.2 kV	25 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	5 V	Quarter Brick	12 V	Remote On/Off	1	125 W
Cincon Electronics Co. LTD CQB150W14-72S12-B	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	12.5 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	12 V	Quarter Brick	12 V	Remote On/Off	1	150 W
Cincon Electronics Co. LTD CQB150W14-72S05-C-B	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	25 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	5 V	Quarter Brick	12 V	Remote On/Off	1	125 W
Cincon Electronics Co. LTD CQB150W14-72S15N-B	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active Low Enable	105 C	-40 °C	4.2 kV	10 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90.5 %	15 V	Quarter Brick	12 V	Remote On/Off	1	150 W
Cincon Electronics Co. LTD CQB150W14-72S12-C	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	12.5 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	12 V	Quarter Brick	12 V	Remote On/Off	1	150 W
Cincon Electronics Co. LTD CQB150W14-72S28-C	Isolated Module	160 V	ITE (Commercial) Railway	Quarter Brick	62368-1	Through Hole	CB CE cURus UKCA	Active High Enable	105 C	-40 °C	4.2 kV	5.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	28 V	Quarter Brick	12 V	Remote On/Off	1	151 W
