65618 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

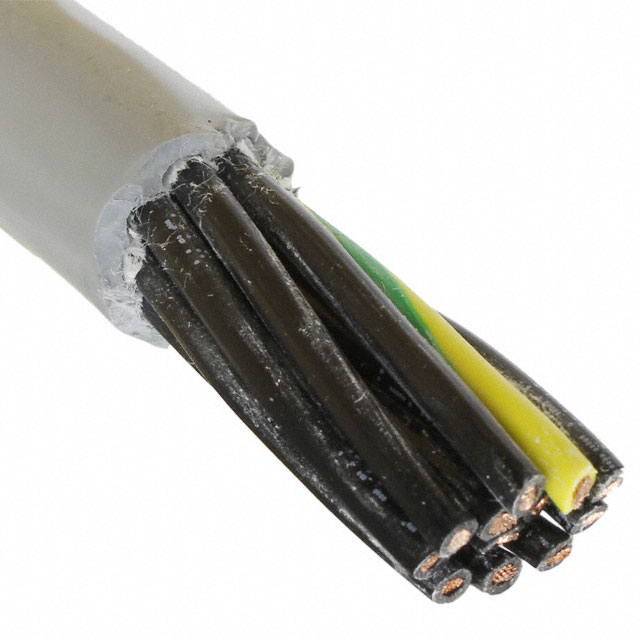

CABLE 18COND 16AWG SLATE
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Voltage | Length [x] | Length [x] | Cable Type | Ratings | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16.05 mm | 0.632 in | 16 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1.27 mm | 0.05 in | 18 | 600 V | 500 ' | 152.4 m | Multi-Conductor | ISO 10993 UL Style 2587 | Biological Compatibility | 30 AWG | 26 | Copper Bare | Slate | ||
ALPHA WIRE | 16.05 mm | 0.632 in | 16 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1.27 mm | 0.05 in | 18 | 600 V | Multi-Conductor | ISO 10993 UL Style 2587 | Biological Compatibility | 30 AWG | 26 | Copper Bare | Slate | 1000 ft | 304.8 m |
