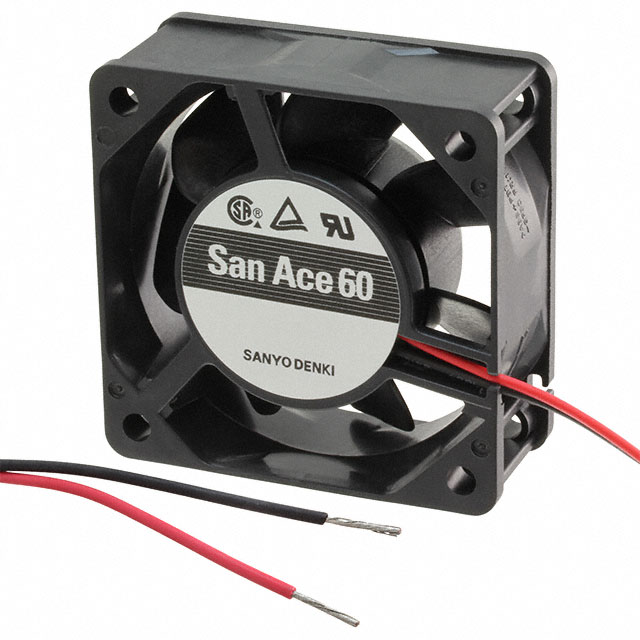

9WP0624 Series

Catalog

AXIAL FAN, SPLASH PROOF, IP68, BALL, 60W SERIES, 24 VDC, 60 MM, 25 MM, 18.7 CU.FT/MIN, 0.53 M3/MIN ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Termination	Width [y]	Ingress Protection	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Power (Watts)	Bearing Type	RPM	Weight	Weight	Air Flow	Air Flow	Noise	Features	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure
Sanyo Denki America Inc. 9WP0624H4011	60 mA	Plastic	Plastic	3 Wire Leads	25 mm	IP68 - Dust Tight Waterproof	24 VDC	-20 ░C	70 °C	CSA TUV UL	60 mm	60 mm	Tubeaxial	1.44 W	Ball	3800 RPM	110.22 g	0.243 lb	18.7 CFM	0.524 mł/min	28 dB	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP0624J4011	0.2 A	Plastic	Plastic	3 Wire Leads	25 mm	IP68 - Dust Tight Waterproof	24 VDC	-20 ░C	60 °C	CSA TUV UL	60 mm	60 mm	Tubeaxial	4.8 W	Ball	7600 RPM	110.22 g	0.243 lb	37.1 CFM	1.04 mł/min	44 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs	26.4 VDC	21.6 VDC	60 °C	-4 °F	0.622 in H2O	155 Pa
Sanyo Denki America Inc. 9WP0624H402	60 mA	Plastic	Plastic	2 Wire Leads	25 mm	IP55 - Dust Protected Water Resistant	24 VDC	-10 °C	70 °C	CSA TUV UL	60 mm	60 mm	Tubeaxial	1.44 W	Ball	3800 RPM	110.22 g	0.243 lb	18.7 CFM	0.524 mł/min	28 dB
Sanyo Denki America Inc. 9WP0624H4D01	60 mA	Plastic	Plastic	3 Wire Leads	25 mm	IP68 - Dust Tight Waterproof	24 VDC	-20 ░C	70 °C	CSA TUV UL	60 mm	60 mm	Tubeaxial	1.44 W	Ball	3800 RPM	110.22 g	0.243 lb	18.7 CFM	0.524 mł/min	28 dB	Locked Rotor Sensor
