ADS1263 Series
Manufacturer: Texas Instruments
Beta
⌘K

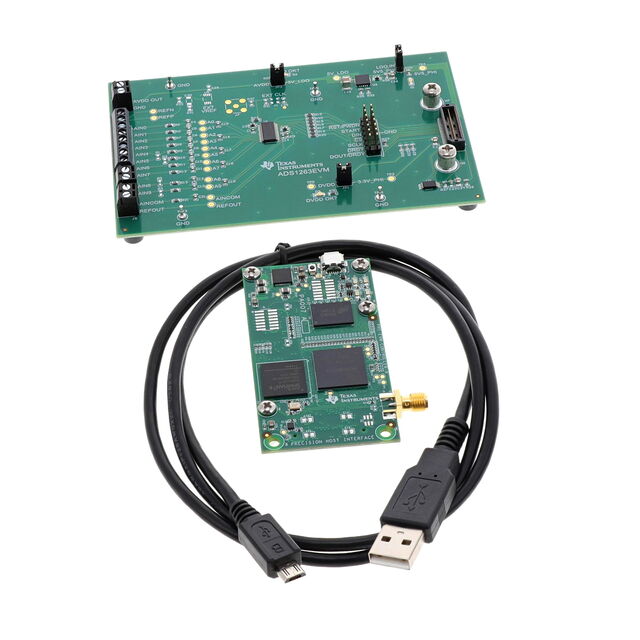

EVAL BOARD FOR ADS1263
| Part | Supplied Contents | Input Range | Sampling Rate (Per Second) | Number of A/D Converters | Utilized IC / Part | Number of Bits | Data Interface | Power (Typ) @ Conditions | Features | Number of Inputs | Reference Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Supplier Device Package | Input Type | Mounting Type | Voltage - Supply, Analog | Architecture | Package / Case | Package / Case | Package / Case [y] | Operating Temperature [Max] | Operating Temperature [Min] | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) Cable(s) | ±VREF/gain | 38000 per second | 2 | ADS1263 | 24 32 | Serial | 25 mW | ||||||||||||||||
 Texas Instruments | Board(s) Cable(s) | ±VREF/gain | 38000 per second | 2 | ADS1263 | 24 32 | Serial | 25 mW | ||||||||||||||||
 Texas Instruments | 38000 per second | 1 | 32 | SPI | PGA Temperature Sensor | 5 10 | External Internal | 5.25 V | 2.7 V | 28-TSSOP | Differential Single Ended | Surface Mount | 5 V | Sigma-Delta | 28-TSSOP | 0.173 in | 4.4 mm | 125 °C | -40 °C | MUX-PGA-ADC | ||||
Texas Instruments | 38000 per second | 1 | 32 | SPI | PGA Temperature Sensor | 5 10 | External Internal | 5.25 V | 2.7 V | 28-TSSOP | Differential Single Ended | Surface Mount | 5 V | Sigma-Delta | 28-TSSOP | 0.173 in | 4.4 mm | 125 °C | -40 °C | MUX-PGA-ADC |
