FAN5702 Series

Catalog

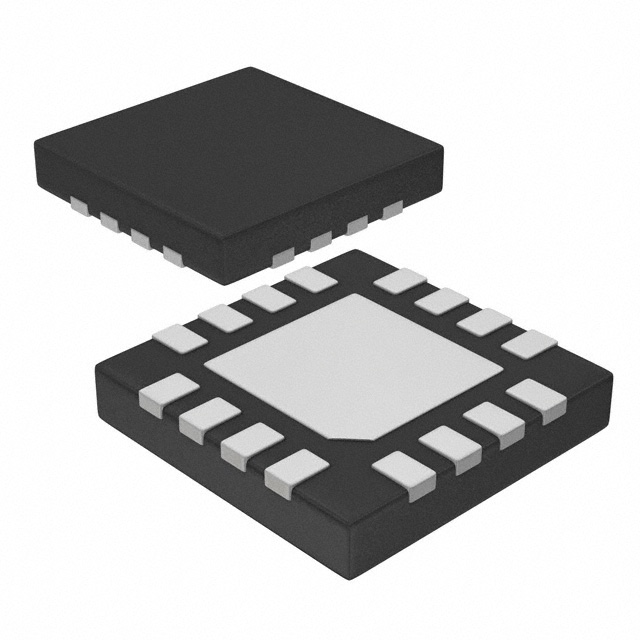

IC LED DRV RGLTR I2C 30MA 16UMLP

Part	Number of Outputs	Frequency	Supplier Device Package	Package / Case	Dimming	Voltage - Supply (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Type	Mounting Type	Current - Output / Channel	Applications	Supplier Device Package [x]	Supplier Device Package [y]
ON Semiconductor FAN5702UMP08X	6	1.2 MHz	16-UMLP (3x3)	16-UFQFN Exposed Pad	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight
ON Semiconductor FAN5702UMP30X	6	1.2 MHz	16-UMLP (3x3)	16-UFQFN Exposed Pad	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight
ON Semiconductor FAN5702UC15X	6	1.2 MHz	16-WLCSP	16-UFBGA WLCSP	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight	1.71	1.71
ON Semiconductor FAN5702UC20X	6	1.2 MHz	16-WLCSP	16-UFBGA WLCSP	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight	1.56	1.56
ON Semiconductor FAN5702UMP15X	6	1.2 MHz	16-UMLP (3x3)	16-UFQFN Exposed Pad	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight
ON Semiconductor FAN5702UC30X	6	1.2 MHz	16-WLCSP	16-UFBGA WLCSP	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight	1.71	1.71
ON Semiconductor FAN5702UMP20X	6	1.2 MHz	16-UMLP (3x3)	16-UFQFN Exposed Pad	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight
ON Semiconductor FAN5702UC20X	6	1.2 MHz	16-WLCSP	16-UFBGA WLCSP	I2C PWM	5.5 V	85 °C	-40 °C	Switched Capacitor (Charge Pump)	DC DC Regulator	Surface Mount	30 mA	Backlight	1.71	1.71
