S-4010 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROTARY DIP BCD 0.1A 2.4V
| Part | Length | Length | Electrical Life | Body Material | Mounting Type | Circuit | Actuator Type | Actuator Level | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Contact Finish | Pitch | Pitch | Pitch | Number of Positions | Current Rating (Amps) | Washable | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

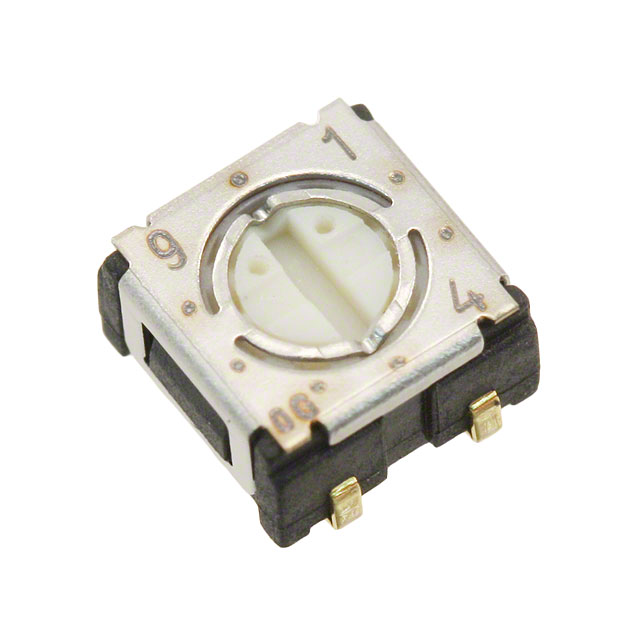

 Nidec Components Corporation | 4.8 mm | 0.189 in | 10000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | BCD | Rotary for Tool | Flush Recessed | 2.4 V | 0.102 in | 2.6 mm | Gold | 0.05 " | 1.27 mm | Half | 10 | 100 mA | -25 °C | 70 °C | Gull Wing | Copper Alloy | |

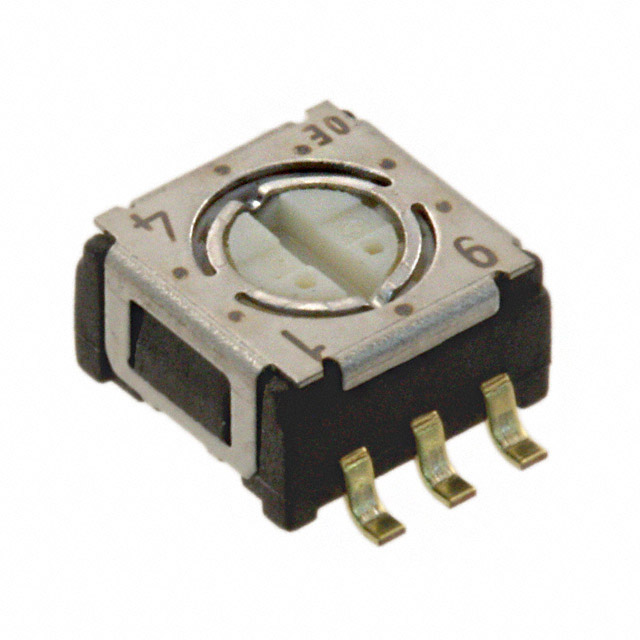

 Nidec Components Corporation | 4.8 mm | 0.189 in | 10000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | BCD | Rotary for Tool | Flush Recessed | 2.4 V | 0.102 in | 2.6 mm | Gold | 0.05 " | 1.27 mm | Half | 10 | 100 mA | -25 °C | 70 °C | J Lead | Copper Alloy |
