044428 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 18 POS 3MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Part	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Height	Insulation Height	Shrouding	Applications	Insulation Color	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Features	Contact Type	Fastening Type	Contact Finish - Mating	Number of Positions
Molex 0444281801	Header	200 µin	5.08 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	5.08 µm	200 µin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	18	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull
Molex 0444281007	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	2.54 çm	100 çin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	10	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull
Molex 0444282204	Header	200 µin	5.08 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	5.08 µm	200 µin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	22 positions	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating	Male Pin	Push-Pull
Molex 0444281682	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.38 µm	15 µin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder		3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull	Gold	16

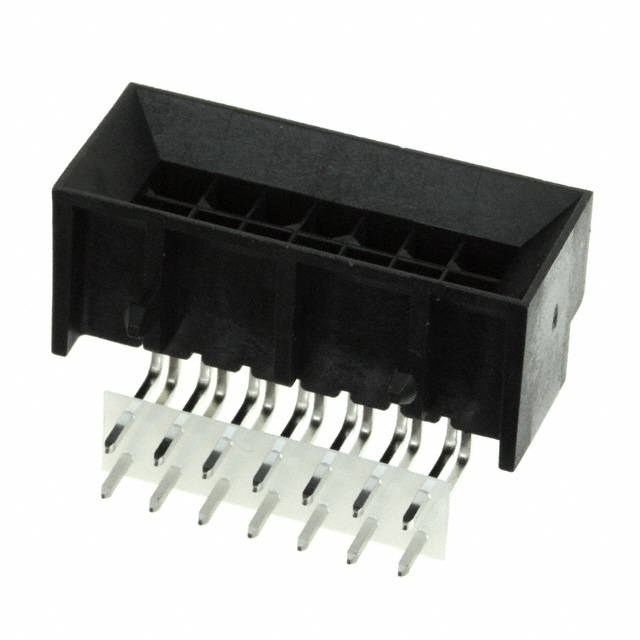

Molex 0444281402	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.38 µm	15 µin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	14	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull	Gold
Molex 0444280406	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.76 Ám	30 Áin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	4	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating	Male Pin	Push-Pull	Gold
Molex 0444282003	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.76 Ám	30 Áin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	20	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull	Gold
Molex 0444280803	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.76 Ám	30 Áin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	8	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating Board Lock	Male Pin	Push-Pull	Gold
Molex 0444280404	Header	200 µin	5.08 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	5.08 µm	200 µin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	4	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating	Male Pin	Push-Pull
Molex 0444281206	Header	100 µin	2.54 µm	Brass	Glass Filled Nylon Polyamide (PA)	2	0.76 Ám	30 Áin	Through Hole Right Angle	0.469 in	11.9 mm	Shrouded - 4 Wall	General Purpose Medical Military Telecommunications	Black	Board to Board Cable	3 mm	0.118 in	Solder	12	3.5 mm	0.138 in	UL94 V-0	Tin	All	0.118 in	3 mm	Square	Blind Mating	Male Pin	Push-Pull	Gold
