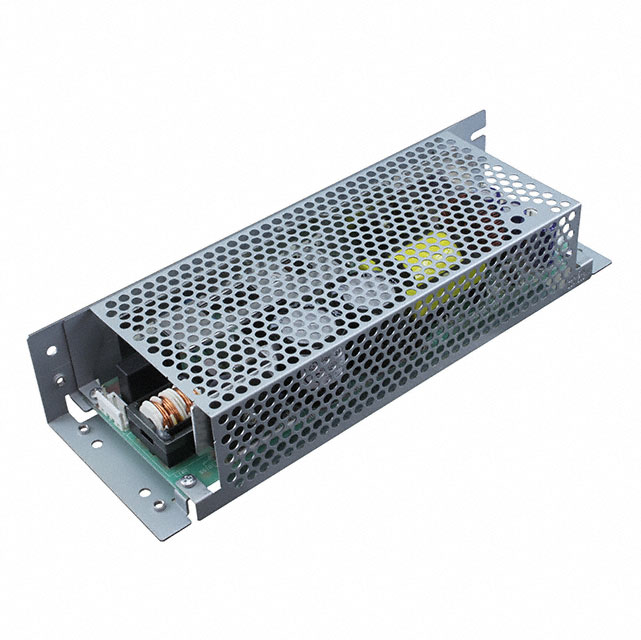

LDA150W Series

Catalog

AC/DC CONVERTER 30V 150W

Part	Current - Output 1	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Approval Agency	Type	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation
Cosel USA, Inc. LDA150W-30-SN	5 A	1	85 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	150 W	30 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1
Cosel USA, Inc. LDA150W-24-R	6.3 A	1	85 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	151 W	24 V	ITE (Commercial)	Chassis Mount		2.95 in		1.46 in	8.74 in			cCSAus CE cURus TUV	Open Frame	60950-1	75 mm	37 mm	222 mm
Cosel USA, Inc. LDA150W-15-SN	10 A	1	83 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	150 W	15 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1				3000 V
Cosel USA, Inc. LDA150W-3-SN	30 A	1	75 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	90 W	3 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1				3000 V
Cosel USA, Inc. LDA150W-48-Y	3 A	1		-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	144 W	48 V	ITE (Commercial)	Chassis Mount		2.95 in		1.46 in	8.74 in		Adjustable Output Universal Input	cCSAus CE cURus TUV	Open Frame	60950-1	75 mm	37 mm	222 mm	3000 V
Cosel USA, Inc. LDA150W-24-SN	6.3 A	1	85 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	151 W	24 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1				3000 V
Cosel USA, Inc. LDA150W-48-SNY	3 A	1		-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	144 W	48 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1				3000 V
Cosel USA, Inc. LDA150W-24	6.3 A	1	85 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	151 W	24 V	ITE (Commercial)	Chassis Mount		2.95 in		1.46 in	8.74 in		Adjustable Output Universal Input	cCSAus CE cURus TUV	Open Frame	60950-1	75 mm	37 mm	222 mm	3000 V
Cosel USA, Inc. LDA150W-48-SN	3 A	1		-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	144 W	48 V	ITE (Commercial)	Chassis Mount	9.92 "	85 mm	1.85 in	47 mm	252 mm	3.35 in	Adjustable Output Universal Input	cCSAus CE cURus TUV	Enclosed	60950-1				3000 V
Cosel USA, Inc. LDA150W-24-H	6.3 A	1	85 %	-10 °C	60 °C	85 VAC 170 VAC	132 VAC 264 VAC	151 W	24 V	ITE (Commercial)	Chassis Mount		2.95 in		1.46 in	8.74 in		Adjustable Output Universal Input	cCSAus CE cURus TUV	Open Frame	60950-1	75 mm	37 mm	222 mm
