TL1L3 Series

Catalog

LED LETERAS WARM WHT 3000K 2SMD

Part	Thermal Resistance of Package	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max [Max]	Supplier Device Package	Color	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	CRI (Color Rendering Index)	Package / Case	Mounting Type	Flux @ 25°C, Current - Test

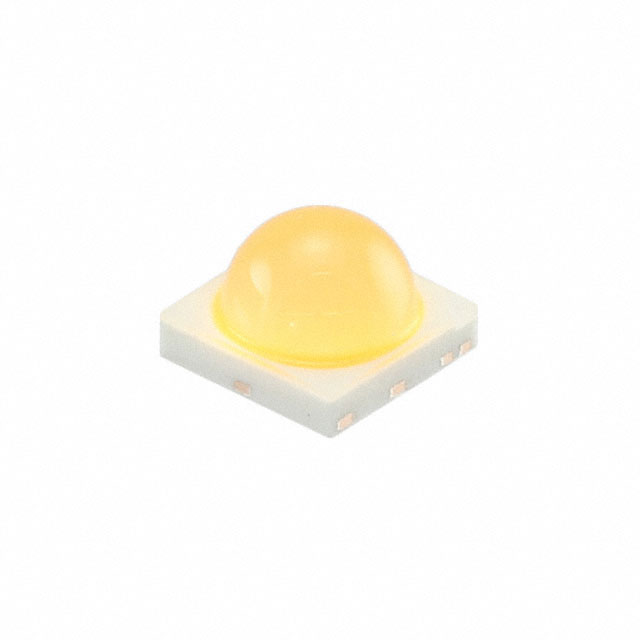

Toshiba Semiconductor and Storage TL1L3-LW1,L	5 °C/W	3000 K	0.138 in	0.138 in	3.5 mm	3.5 mm	350 mA	2.85 V	119 lm/W	1 A	3535	Warm White	100 °	0.099 in	2.52 mm	80	1414 (3535 Metric)	Surface Mount
Toshiba Semiconductor and Storage TL1L3-LL1,L	5 °C/W	2700 K	0.138 in	0.138 in	3.5 mm	3.5 mm	350 mA	2.85 V	112 lm/W	1 A	3535	Warm White	100 °	0.099 in	2.52 mm	80	1414 (3535 Metric)	Surface Mount	112 lm
