746-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

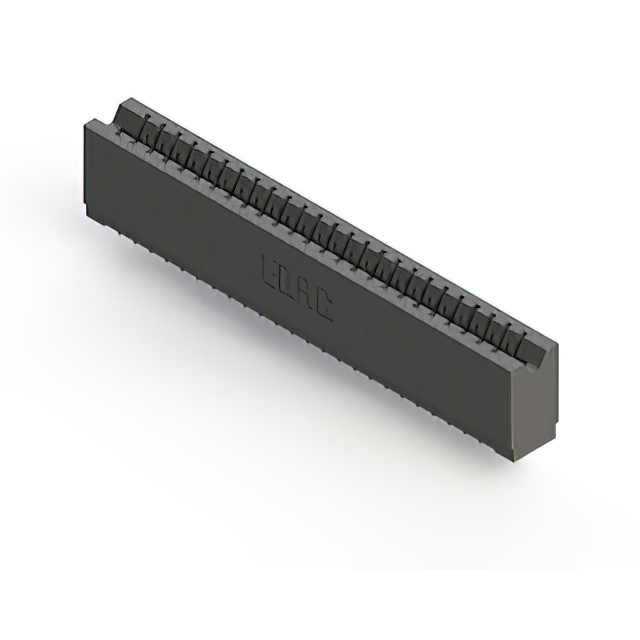

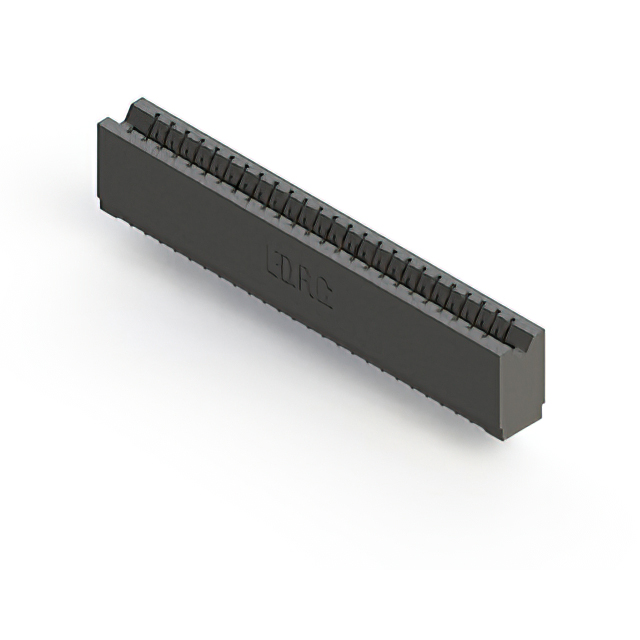

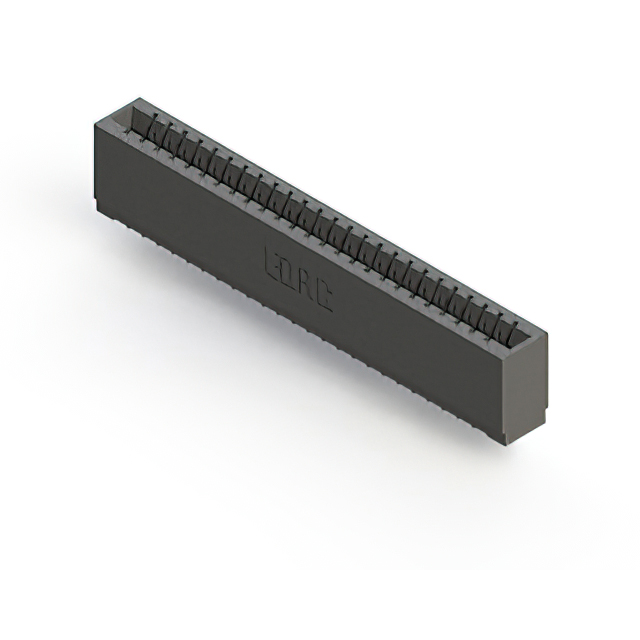

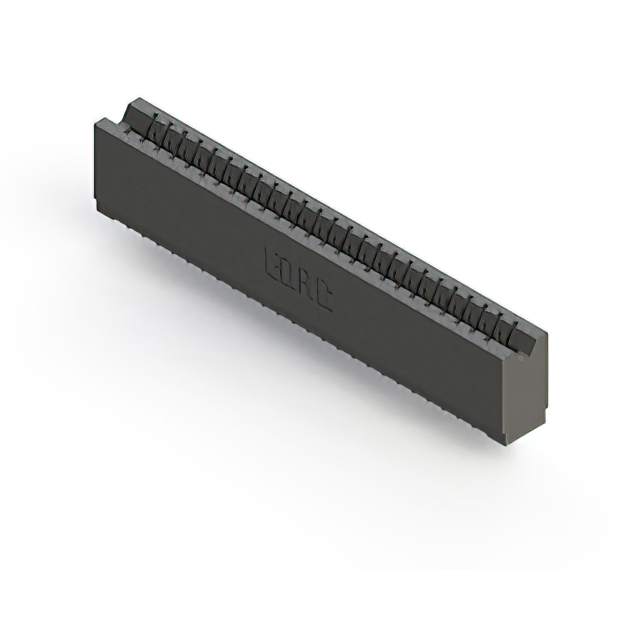

CONN EDGE SGL FMALE 25POS 0.125
| Part | Termination Rows | Material - Insulation | Card Type | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Read Out | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Gender | Mounting Type | Number of Positions/Bay/Row | Contact Finish | Number of Positions | Contact Material | Termination | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit Wire Wrap | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Cantilever | Black | Single | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Female | Through Hole | 25 | Gold | 25 | Copper Alloy | Press-Fit | 1 |
