1969729 Series

Catalog

EP2.5 SHROUDED HDR ASSY 15P VERT

Part	Style	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Fastening Type	Contact Finish - Post	Insulation Material	Contact Material	Number of Rows	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Voltage Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Insulation Height [z]	Insulation Height [z]	Mounting Type	Material Flammability Rating	Insulation Color	Applications	Contact Length - Mating	Contact Length - Mating	Contact Type
TE Connectivity Raychem Cable Protection 1-1969729-5	Board to Cable/Wire	0.134 in	3.4 mm	Kinked Pin Solder	2.5 mm	0.098 in	15	Locking Ramp	Tin	Thermoplastic	Brass	1	4.2 A	Header	All	250 VAC	Circular	105 ░C	-55 °C	Shrouded - 4 Wall	0.346 in	8.8 mm	Through Hole	UL94 V-0	Natural	General Purpose Industrial Lighting	3.61 mm	0.142 in	Male Pin
TE Connectivity Raychem Cable Protection 1969729-7	Board to Cable/Wire	0.134 in	3.4 mm	Kinked Pin Solder	2.5 mm	0.098 in	7	Locking Ramp	Tin	Thermoplastic	Brass	1	4.2 A	Header	All	250 VAC	Circular	105 ░C	-55 °C	Shrouded - 4 Wall	0.346 in	8.8 mm	Through Hole	UL94 V-0	Natural	General Purpose Industrial Lighting	3.6 mm	0.141 in	Male Pin

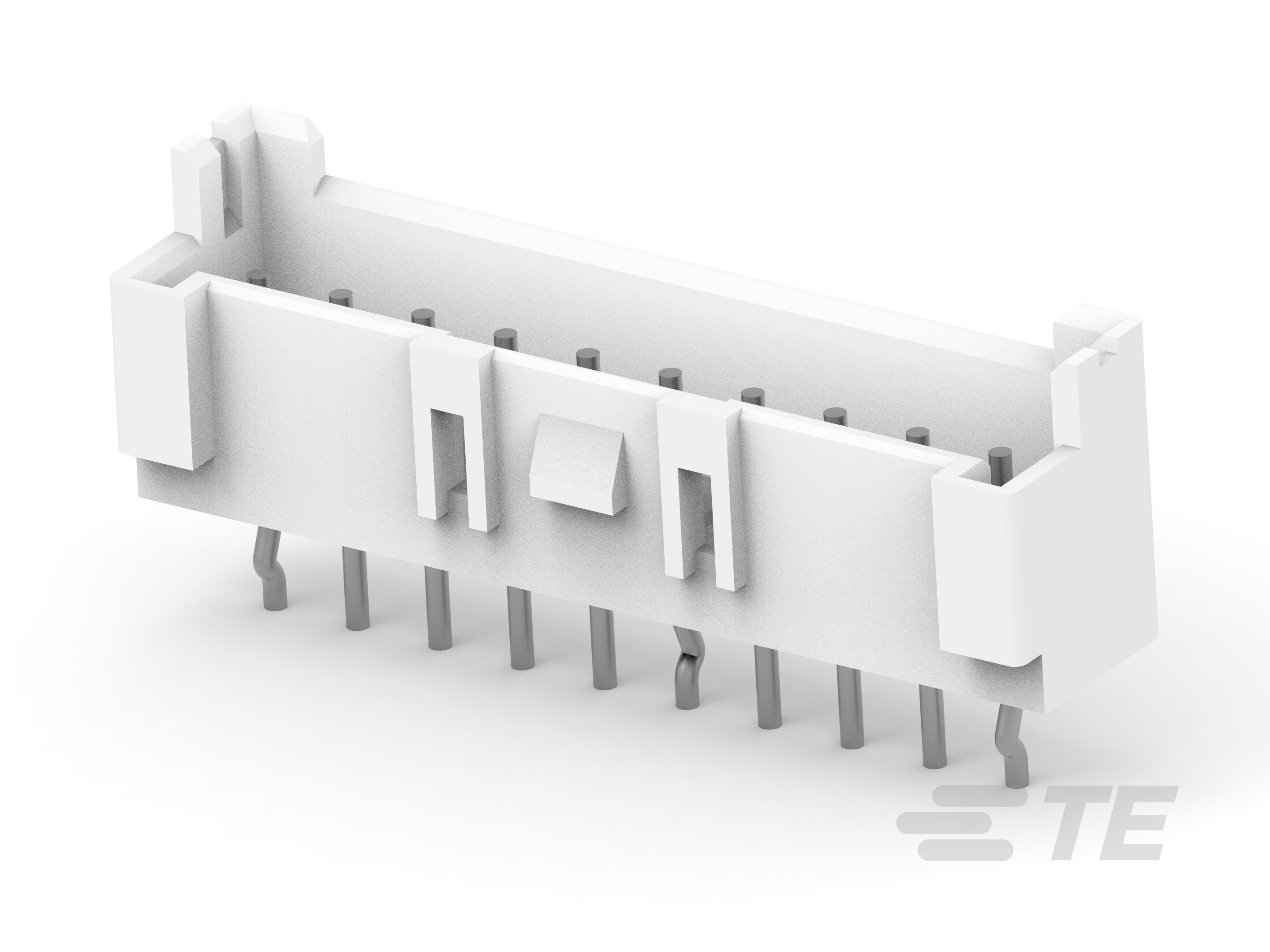

TE Connectivity Raychem Cable Protection 1-1969729-0	Board to Cable/Wire	0.134 in	3.4 mm	Kinked Pin Solder	2.5 mm	0.098 in	10	Locking Ramp	Tin	Thermoplastic	Brass	1	4.2 A	Header	All	250 VAC	Circular	105 ░C	-55 °C	Shrouded - 4 Wall	0.346 in	8.8 mm	Through Hole	UL94 V-0	Natural	General Purpose Industrial Lighting	3.6 mm	0.141 in	Male Pin
