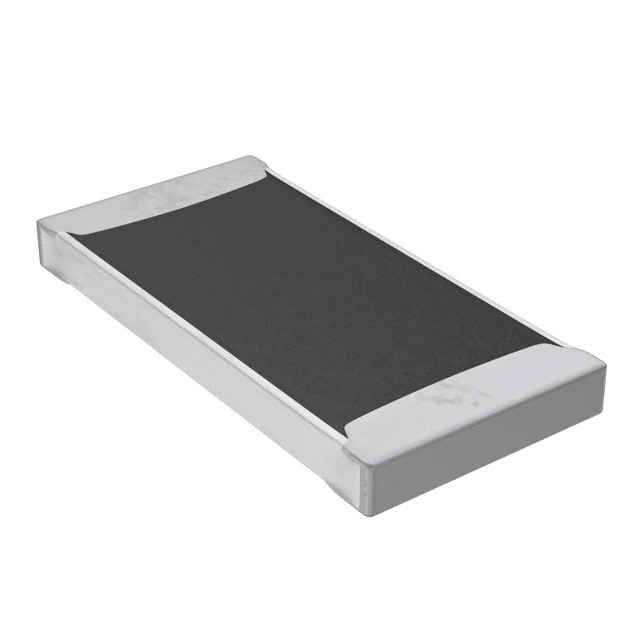

TNPW2512 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

RES 1K OHM 0.1% 1/2W 2512

Part	Composition	Features	Tolerance	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Ratings	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Number of Terminations	Power (Watts)	Power (Watts)
Vishay General Semiconductor - Diodes Division TNPW25121K00BEEG	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	1000 Ohms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW251210K0FEEY	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	10000 Ohms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW2512120RBEEY	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	120 Ohms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW25124K99BEEY	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	4.99 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW251297K6BETG	Thin Film	Military	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	125 °C	6432 Metric	2512	AEC-Q200	97.6 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW251239K0BETG	Thin Film	Military	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	125 °C	6432 Metric	2512		39 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW25127M50FEEY	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	7.5 MOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW2512887KBEEG	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	887 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW2512205KBEEG	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	205 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
Vishay General Semiconductor - Diodes Division TNPW251295K3BEEG	Thin Film	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	0.1 %	25 ppm/°C	6.3 mm	0.122 in	3.1 mm	0.248 in	-55 °C	347 °F	6432 Metric	2512	AEC-Q200	95.3 kOhms	0.03 in	0.75 mm	2512	2	0.5 W	0.5 W
