3ESH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Actuator Material	Mechanical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination	Features	Outline [x]	Outline [y]	Operating Force	Contact Rating @ Voltage	Switch Function	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mounting Type	Circuit	Ingress Protection	Actuator Height off PCB, Vertical

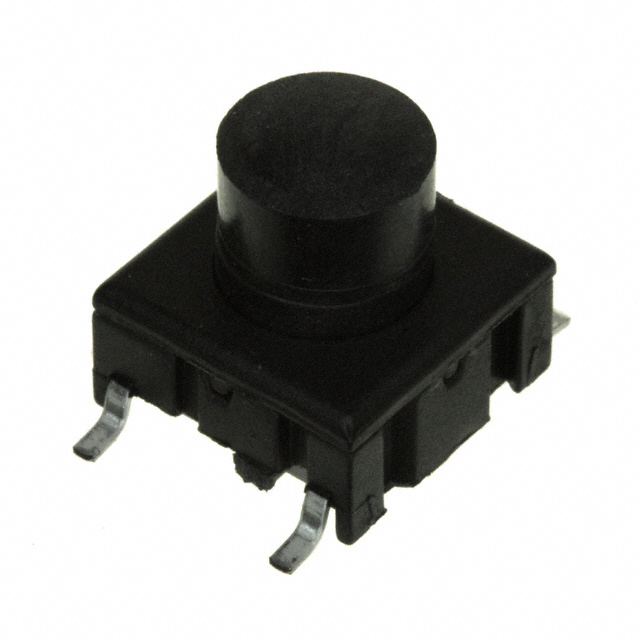

MEC Switches 3ESH9-10.4	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Gull Wing	160 °C	-40 C	Standard	Non-Illuminated	Sealed - Flux Protection	10.1 mm	10.1 mm	300 gf	0.05 A 24 VDC	Off-Mom	10.4 mm	Top Actuated	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof

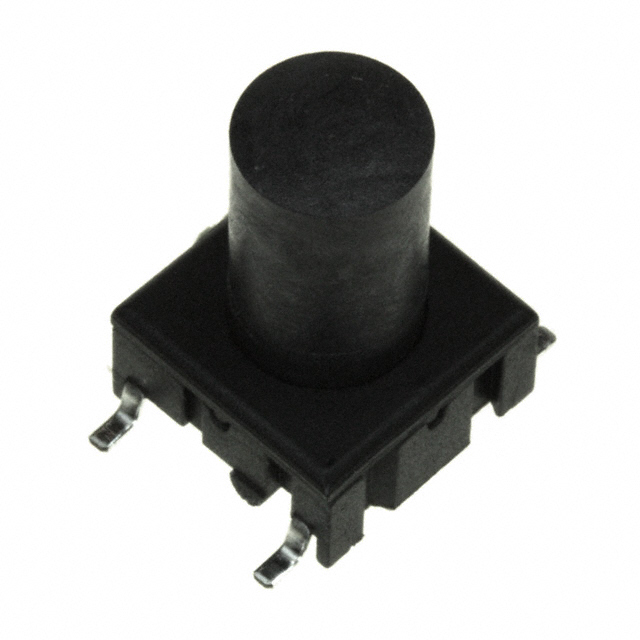

MEC Switches 3ESH9-15.0	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Gull Wing	160 °C	-40 C	Standard	Non-Illuminated	Sealed - Flux Protection	10.1 mm	10.1 mm	300 gf	0.05 A 24 VDC	Off-Mom		Top Actuated	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof	15 mm

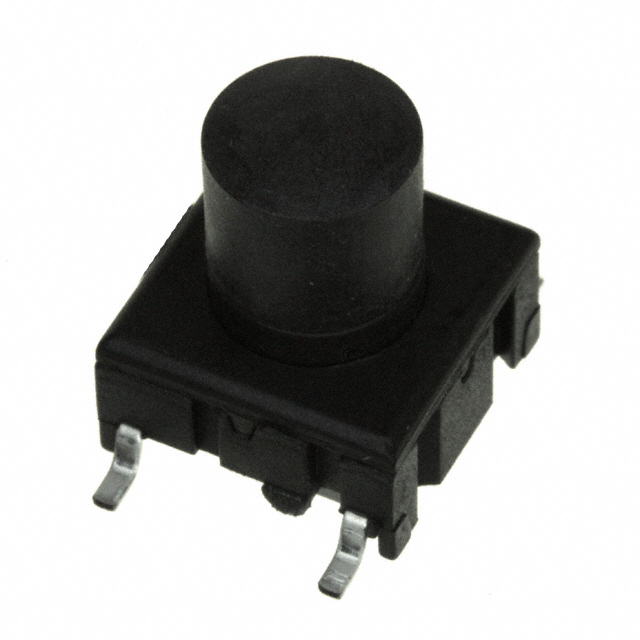

MEC Switches 3ESH9-12.0	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Gull Wing	160 °C	-40 C	Standard	Non-Illuminated	Sealed - Flux Protection	10.1 mm	10.1 mm	300 gf	0.05 A 24 VDC	Off-Mom	12 mm	Top Actuated	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof

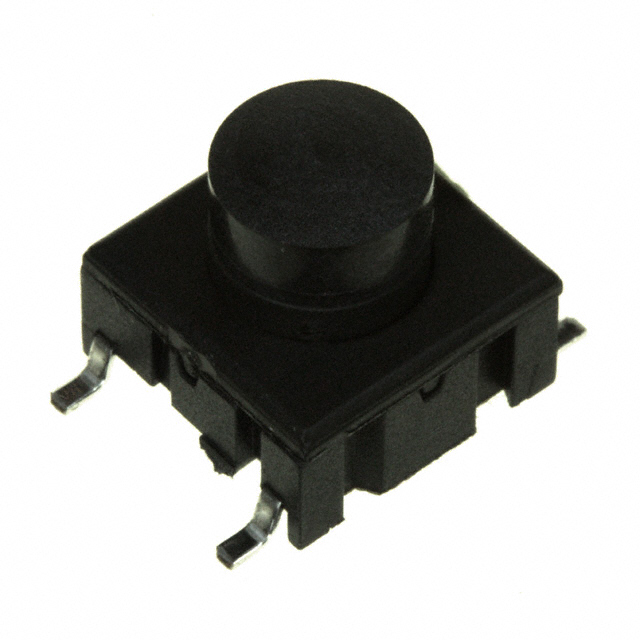

MEC Switches 3ESH9-09.5	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Gull Wing	160 °C	-40 C	Standard	Non-Illuminated	Sealed - Flux Protection	10.1 mm	10.1 mm	300 gf	0.05 A 24 VDC	Off-Mom	9.5 mm	Top Actuated	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof

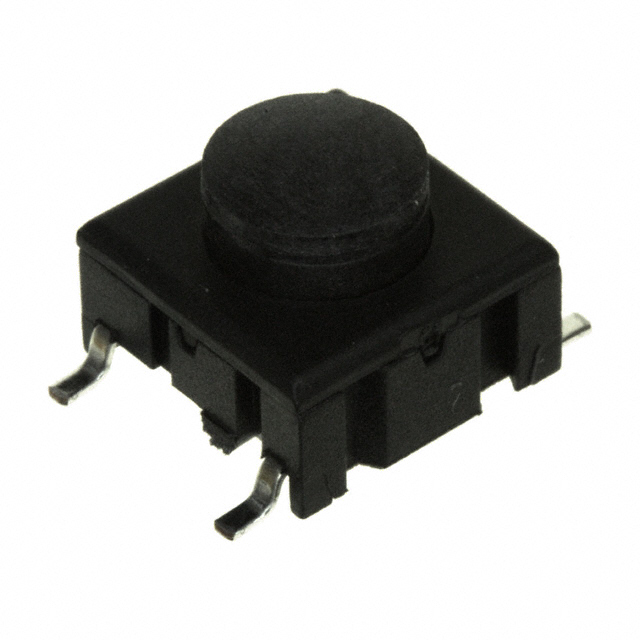

MEC Switches 3ESH9-08.0	1 mm	Polyphenylene Sulfide (PPS)	10000000 Cycles	Gull Wing	160 °C	-40 C	Standard	Non-Illuminated	Sealed - Flux Protection	10.1 mm	10.1 mm	300 gf	0.05 A 24 VDC	Off-Mom		Top Actuated	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof	8 mm
