1408150 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

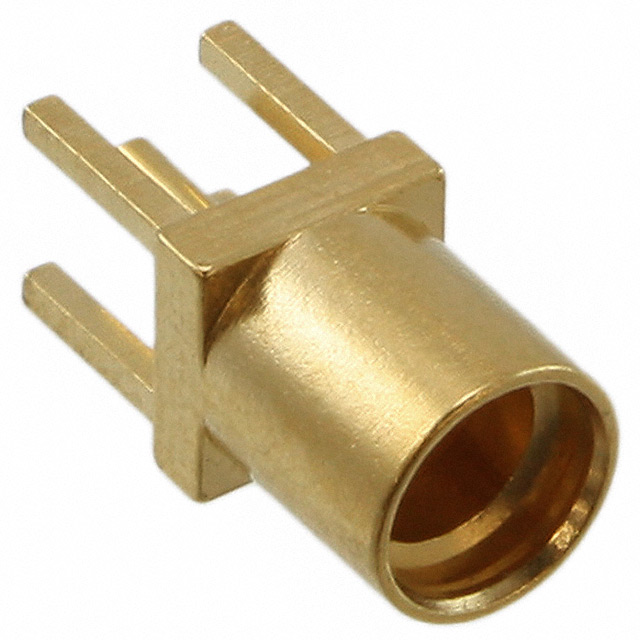

CONN MMCX 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE RCP GOLD PACKAGE
| Part | Voltage Rating | Dielectric Material | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Center Contact Material | Mounting Type | Connector Type | Housing Color | Shield Termination | Contact Termination | Number of Ports | Impedance | Connector Style | Fastening Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 170 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | 155 C | -55 C | Gold | 500 | Beryllium Copper | Through Hole | Female Socket Jack | Gold | Solder | Solder | 1 | 50 Ohms | MMCX | Snap-On | 6000 MHz |
