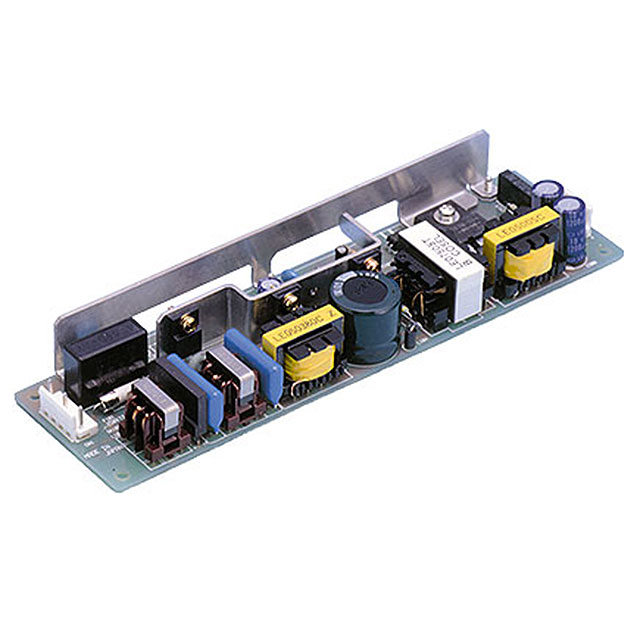

LEA50F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 15V 50W
| Part | Efficiency | Voltage - Isolation | Current - Output 1 | Features | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Voltage - Output 1 | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 81 % | 3000 V | 3.5 A | Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 15 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 83 % | 3000 V | 2.1 A | Adjustable Output Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 24 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 81 % | 3000 V | 3.5 A | Adjustable Output Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 15 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
 Cosel USA, Inc. | 81 % | 3000 V | 3.5 A | Universal Input | Enclosed | 8.86 " | 225 mm | 36 mm | 65 mm | 1.42 " | 2.56 in | 50 W | 15 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 83 % | 3000 V | 2.1 A | Universal Input | Enclosed | 8.86 " | 225 mm | 36 mm | 65 mm | 1.42 " | 2.56 in | 50 W | 24 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 77 % | 3000 V | 10 A | Universal Input | Enclosed | 8.86 " | 225 mm | 36 mm | 65 mm | 1.42 " | 2.56 in | 50 W | 5 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 85 % | 3000 V | 1.1 A | Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 48 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 71 % | 3000 V | 10 A | Adjustable Output Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 3.3 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 83 % | 3000 V | 2.1 A | Universal Input | Enclosed | 8.86 " | 225 mm | 36 mm | 65 mm | 1.42 " | 2.56 in | 50 W | 24 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
Cosel USA, Inc. | 80 % | 3000 V | 5.6 A | Universal Input | Open Frame | 7.68 in | 195 mm | 23 mm | 55 mm | 0.91 in | 2.17 " | 50 W | 9 V | ITE (Commercial) | 70 °C | -20 °C | 1 | Chassis Mount | CE cURus TUV |
