65609 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

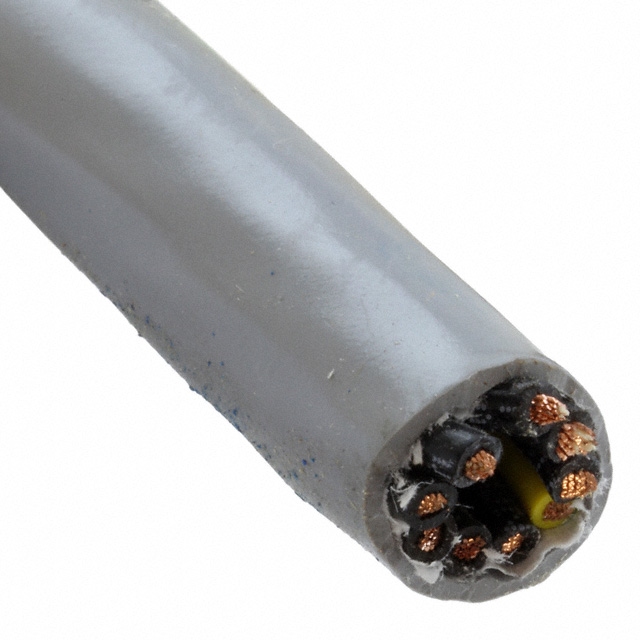

CABLE 9COND 16AWG SLATE 100'
| Part | Wire Gauge | Jacket (Insulation) Material | Conductor Material | Length [x] | Length [x] | Number of Conductors | Conductor Insulation | Features | Cable Type | Ratings | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16 AWG | Poly-Vinyl Chloride (PVC) | Copper Bare | 30.5 m | 100 ft | 9 | Poly-Vinyl Chloride (PVC) | Biological Compatibility | Multi-Conductor | ISO 10993 UL Style 2587 | 600 V | 1.041 mm | 0.041 in | Slate | 12.93 mm | 0.509 in | 30 AWG | 26 |
 ALPHA WIRE | 16 AWG | Poly-Vinyl Chloride (PVC) | Copper Bare | 152.4 m | 500 ' | 9 | Poly-Vinyl Chloride (PVC) | Biological Compatibility | Multi-Conductor | ISO 10993 UL Style 2587 | 600 V | 1.041 mm | 0.041 in | Slate | 12.93 mm | 0.509 in | 30 AWG | 26 |
