PV32N Series

Catalog

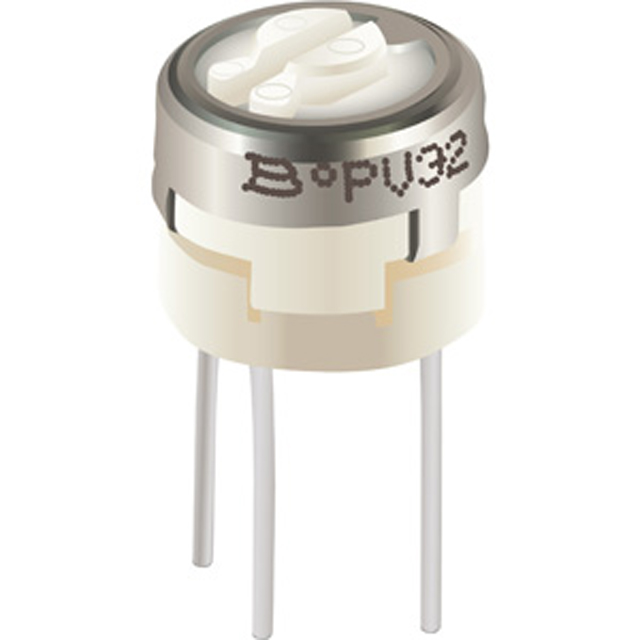

TRIMMER 2M OHM 0.5W PC PIN SIDE

Part	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Temperature Coefficient	Termination Style	Adjustment Type	Mounting Type	Resistive Material	Power (Watts)	Power (Watts)
Bourns Inc. PV32N205A01B00	20 %	2 MOhms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N203A01B00	20 %	20 kOhms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N500A01B00	20 %	50 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N251A01B00	20 %	250 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N201A01B00	20 %	200 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N253A01B00	20 %	25 kOhms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N105A01B00	20 %	1 MOhms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N254A01B00	20 %	250000 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N103A01B00	20 %	10000 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
Bourns Inc. PV32N101A01B00	20 %	100 Ohms	0.315 in	0.272 in	8 mm	6.9 mm	1	100 ppm/°C	PC Pins	Side Adjustment	Through Hole	Cermet	0.5 W	0.5 W
