ATS-07A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

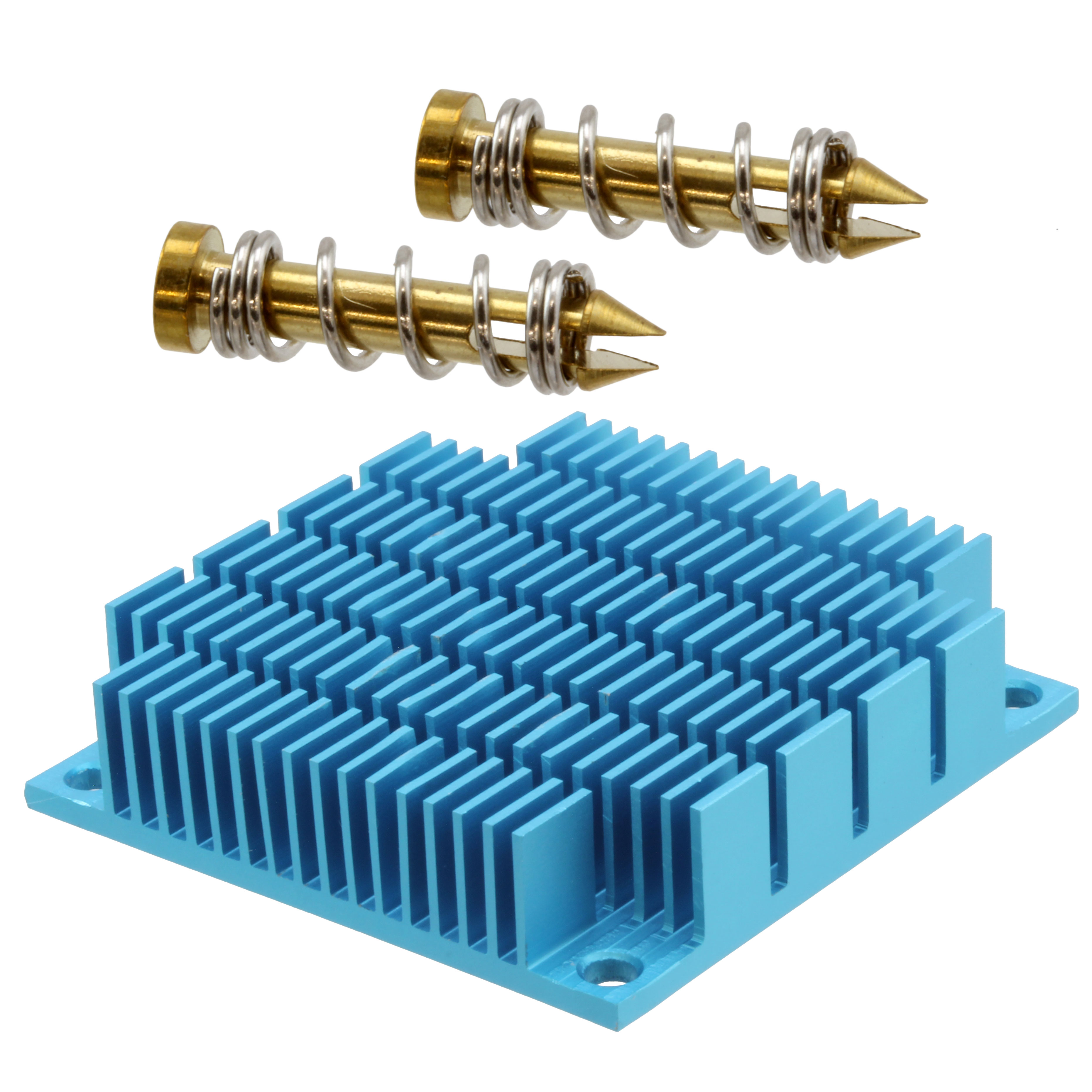

HEATSINK 40X40X35MM R-TAB T766

...

Part	Thermal Resistance @ Forced Air Flow	Material Finish	Attachment Method	Type	Material	Width [y]	Width [y]	Package Cooled	Fin Height [custom]	Fin Height [custom]	Shape	Length [x]	Length	Fin Height	Fin Height	Length [x]	Width	Width	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Length
Advanced Thermal Solutions Inc. ATS-07A-186-C2-R0	2.8 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum	1.575 in	40 mm	ASIC BGA CPU LGA	1.378 in	35 mm	Fins Square
Advanced Thermal Solutions Inc. ATS-07A-175-C3-R0	13.65 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum	1.378 "	35 mm	ASIC BGA CPU LGA	0.394 "	10 mm	Fins Square	1.378 "	35 mm
Advanced Thermal Solutions Inc. ATS-07A-190-C1-R0	3.6 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square	1.772 in		25 mm	0.984 in	45 mm	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-07A-108-C3-R1	27.12 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square	1.969 in		12.7 mm	0.5 "	50 mm			50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-07A-77-C2-R0	9.3 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square	0.984 in	25 mm						25 mm	0.984 "	1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-07A-142-C2-R0	10.07 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square		0.03 m						30 mm	1.181 in	0.59 in	15 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-07A-17-C2-R0	15.44 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square		54 mm	12.7 mm	0.5 "				54 mm	2.126 in			2.126 in
Advanced Thermal Solutions Inc. ATS-07A-63-C3-R0	12.42 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum	1.575 in	40 mm	ASIC BGA CPU LGA			Fins Square										0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-07A-78-C3-R0	7.98 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA	1.378 in	35 mm	Fins Square	0.984 in	25 mm						25 mm	0.984 "
Advanced Thermal Solutions Inc. ATS-07A-118-C3-R0	6.64 °C/W	Blue Anodized	Push Pin	Top Mount	Aluminum			ASIC BGA CPU LGA			Fins Square	1.772 in				45 mm	1.772 in	45 mm			0.59 in	15 mm
