PRPC040 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 80POS 2.54MM

Part	Contact Finish Thickness - Post	Mounting Type	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Color	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Shape	Termination	Shrouding	Contact Material	Number of Rows	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC040DABN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	5.84 mm	0.23 "	80	Black	0.558 in	14.18 mm	Push-Pull	Square	Solder	Unshrouded	Brass

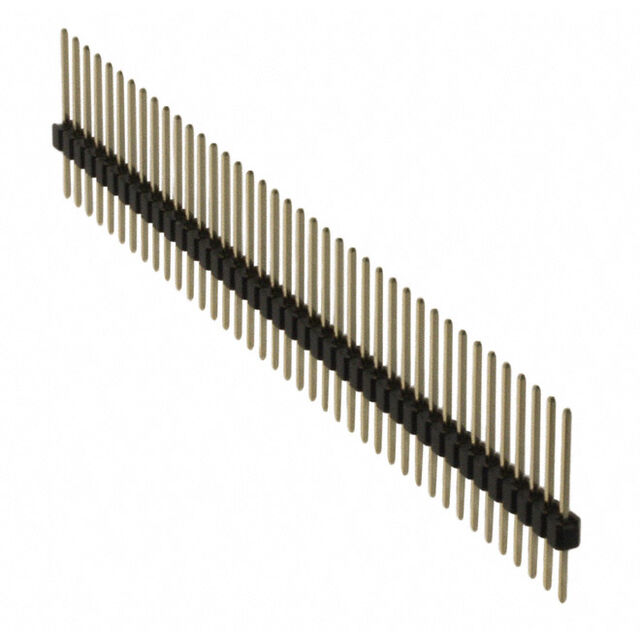

Sullins Connector Solutions PRPC040SADN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)				0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	10.67 mm	0.42 in	40	Black	0.748 in	19.01 mm	Push-Pull	Square	Solder	Unshrouded	Brass	1
Sullins Connector Solutions PRPC040DAAN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	3.05 mm	0.12 in	80	Black	0.448 in	11.39 mm	Push-Pull	Square	Solder	Unshrouded	Brass

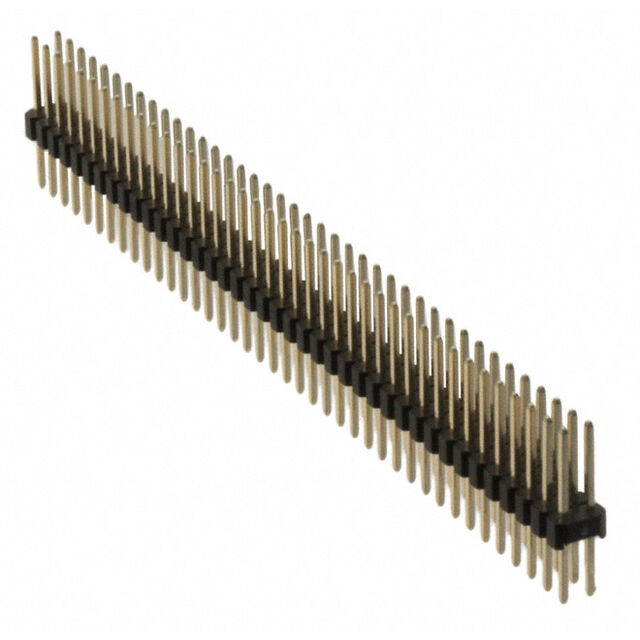

Sullins Connector Solutions PRPC040DFBN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.318 in	8.08 mm	5.58 mm	0.22 in	80	Black		0.637 in	Push-Pull	Square	Solder	Unshrouded	Brass		16.17 mm

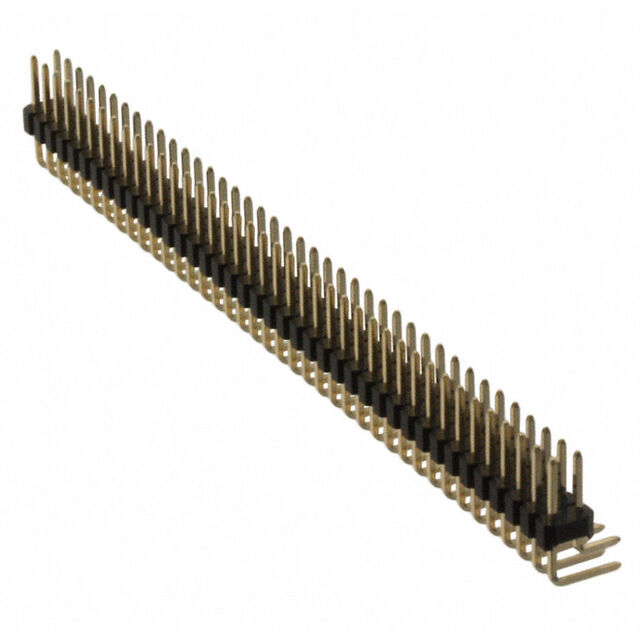

Sullins Connector Solutions PRPC040DBAN-M71RC	Flash	Right Angle Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.197 "	5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	3.05 mm	0.12 in	80	Black			Push-Pull	Square	Solder	Unshrouded	Brass
Sullins Connector Solutions PRPC040DFAN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.318 in	8.08 mm	3.05 mm	0.12 in	80	Black			Push-Pull	Square	Solder	Unshrouded	Brass			13.63 mm	0.537 in

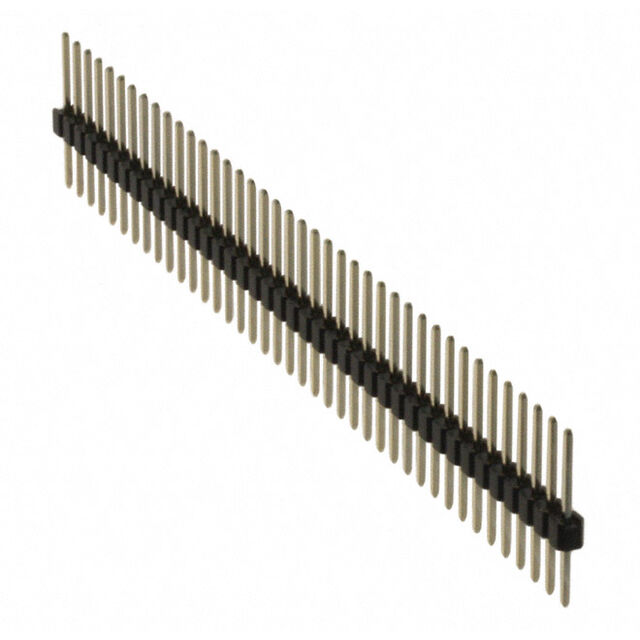

Sullins Connector Solutions PRPC040SACN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)				0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	8.13 mm	0.32 in	40	Black			Push-Pull	Square	Solder	Unshrouded	Brass	1		16.47 mm	0.648 in
Sullins Connector Solutions PRPC040SAAN-RC	Flash	Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)				0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.23 in	5.84 mm	3.05 mm	0.12 in	40	Black	0.448 in	11.39 mm	Push-Pull	Square	Solder	Unshrouded	Brass	1

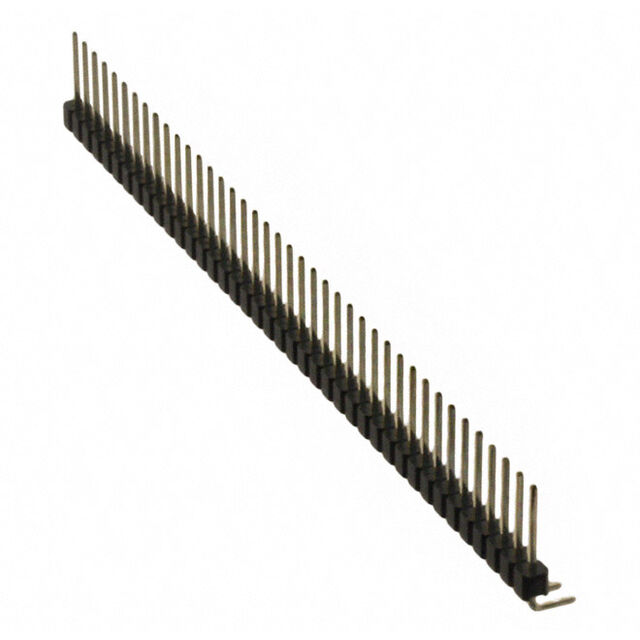

Sullins Connector Solutions PRPC040SGAN-M71RC	Flash	Right Angle Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)				0.098 "	2.5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.318 in	8.08 mm	3.05 mm	0.12 in	40	Black			Push-Pull	Square	Solder	Unshrouded	Brass	1

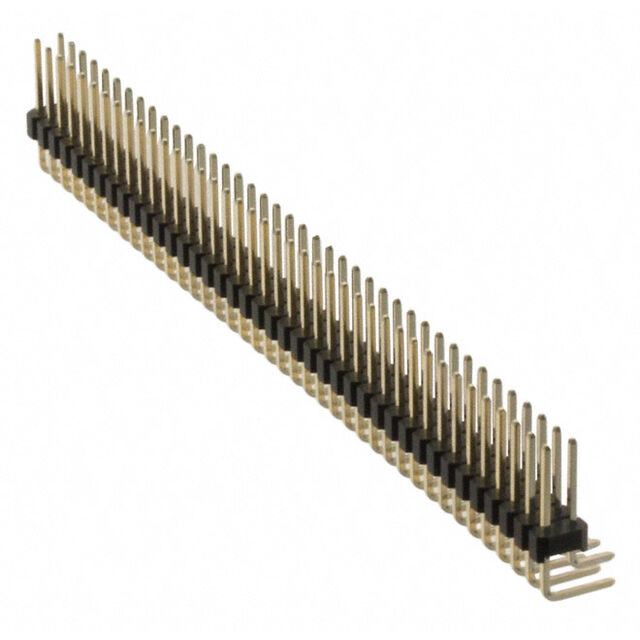

Sullins Connector Solutions PRPC040DGAN-M71RC	Flash	Right Angle Through Hole	Male Pin	UL94 V-0	-40 C	105 ░C	Gold	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2	0.197 "	5 mm	Header Breakaway	3 A	Board to Board Cable	Flash	Gold	0.1 "	2.54 mm	All	0.318 in	8.08 mm	3.05 mm	0.12 in	80	Black			Push-Pull	Square	Solder	Unshrouded	Brass
