XCL103 Series

Catalog

INDUCTOR BUILT-IN STEP-UP MICRO

Part	Package / Case	Supplier Device Package	Mounting Type	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]

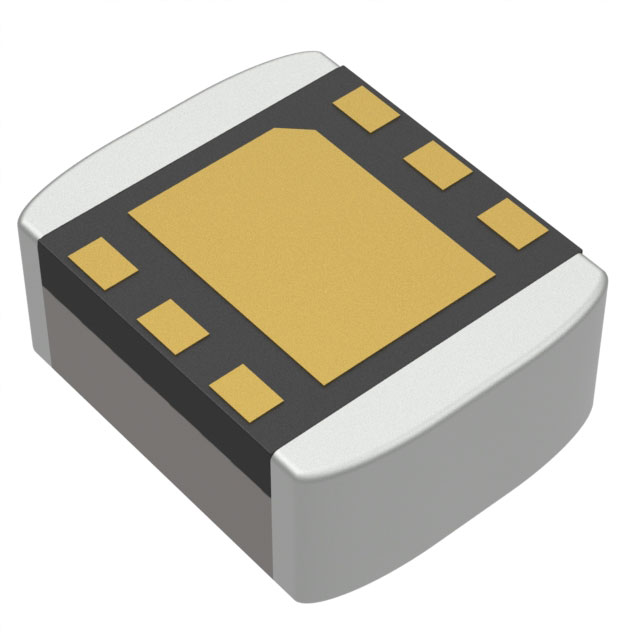

Torex Semiconductor Ltd XCL103D523CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103E363CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103E373CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103E393CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103E303CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount	0.9 V	ITE (Commercial)	6 V	2.94 V	3.06 V	1	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	86 %	OCP SCP	Non-Isolated PoL Module	85 °C	-40 C
Torex Semiconductor Ltd XCL103E413CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103D453CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount	0.65 V	ITE (Commercial)	6 V			1	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	86 %		Non-Isolated PoL Module	85 °C	-40 C	4.5 V
Torex Semiconductor Ltd XCL103D353CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
Torex Semiconductor Ltd XCL103D333CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount	0.9 V	ITE (Commercial)	6 V			1	0.04 in	2.5 mm	0.08 in	2 mm	1 mm	0.1 "	86 %	OCP SCP	Non-Isolated PoL Module	85 °C	-40 C		1.2 W	350 mA	3.366 V	3.234 V
Torex Semiconductor Ltd XCL103E473CR-G	8-TDFN Exposed Pad	CL-2025-02	Surface Mount
