ME30A4803 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC DESKTOP ADAPTER 48V 30W

Part	Polarization	Voltage - Output	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Approval Agency	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	Applications	Input Type	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Region Utilized	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]

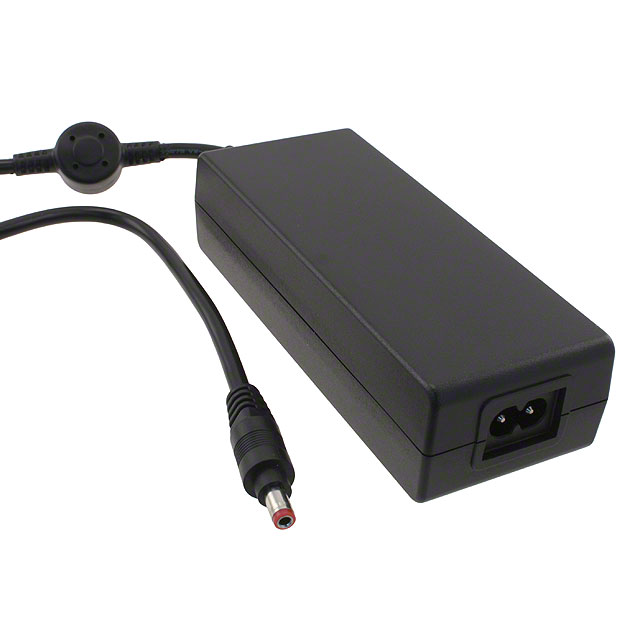

SL POWER / Advanced Energy ME30A4803N01	Positive Center	48 V	630 mA	-20 ░C	50 °C	Level VI	CE	IEC 320-C8	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	30 Watts	Medical	Cord (Sold Separately)	57 in	1.45 m	264 VAC	90 VAC	100 mW	International	Desktop (Class II)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in
SL POWER / Advanced Energy ME30A4803Q01	Positive Center	48 V	630 mA	-20 ░C	70 °C	Level VI	CE	IEC 320-C18	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	30 Watts	Medical	Cord (Sold Separately)	57 in	1.45 m	264 VAC	90 VAC	100 mW	International	Desktop (Class II)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in

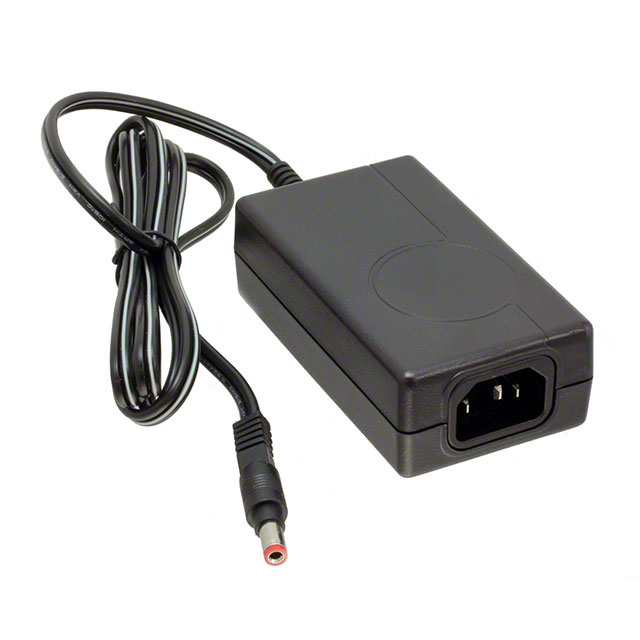

SL POWER / Advanced Energy ME30A4803F01	Positive Center	48 V	630 mA	-20 ░C	50 °C	Level VI	CE	IEC 320-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	30 Watts	Medical	Cord (Sold Separately)	57 in	1.45 m	264 VAC	90 VAC	100 mW	International	Desktop (Class I)	95.5 mm	54 mm	3.76 in	31 mm	1.22 in	2.13 in

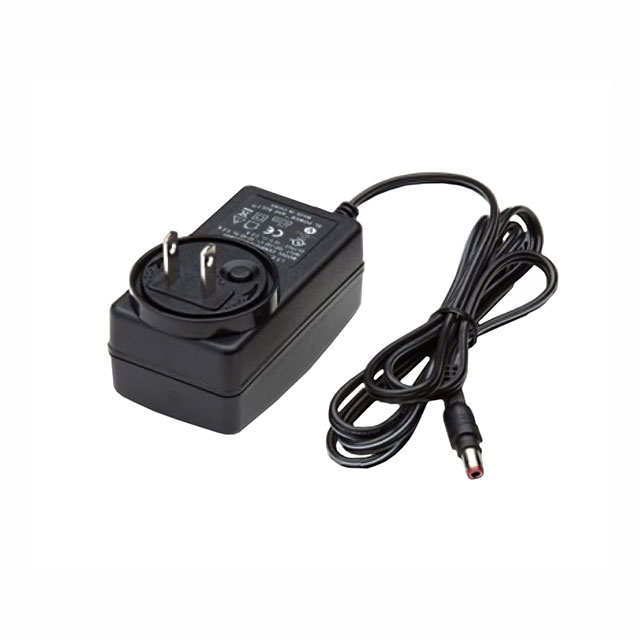

SL POWER / Advanced Energy ME30A4803C01	Positive Center	48 V	630 mA	-20 ░C	50 °C	Level VI	CE	NEMA 1-15P	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	30 Watts	Medical	Fixed Blade	57 in	1.45 m	264 VAC	90 VAC	100 mW	North America	Wall Mount			96 mm		33.6 mm	55 mm	3.78 in	2.17 "	1.32 in
