TNS-200 Series
Manufacturer: ICP DAS USA INC
Beta
⌘K

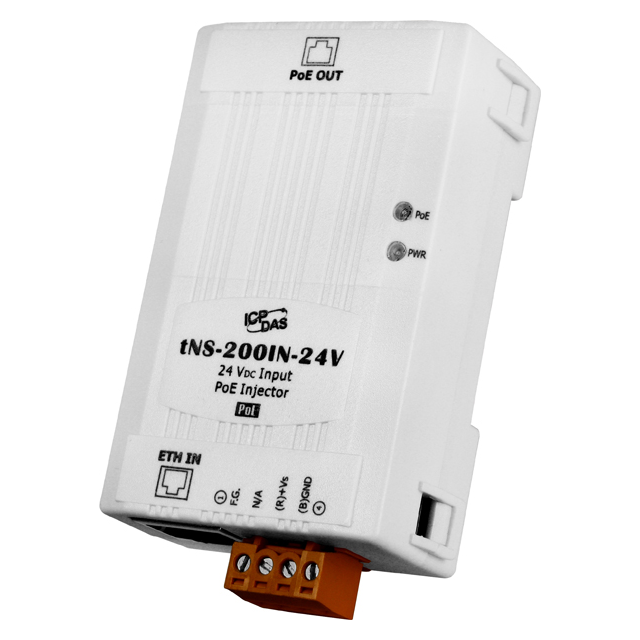

POE INJECTOR FOR 1 POE PORT 24V
| Part | Input Connector | Output Connector | Current - Output | Voltage - Output | Type | Number of Ports | Power (Watts) - Per Port | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Compliance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Data Rate [Min] | Data Rate [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ICP DAS USA INC | RJ45 (Data) Terminal Block (Power) | RJ45 (Data Power) | 0.32 A | 48 V | Midspan Injector | 2 | 15.4 W | 32 VDC | 18 VDC | 1.06 in | 3.39 " | 86 mm | 2.05 in | 27 mm | 52 mm | IEEE802.3af | -40 C | 75 ░C | Desktop | 10 Mbps | 100 Mbps | CE FCC |
