ACC06E24 Series

Manufacturer: Amphenol Industrial Operations

Catalog

CONN PLUG FMALE 2P SILVER CRIMP

Part	Color	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Material	Shell Finish	Insert Material	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Shielding	Features	Termination	Mounting Type	Number of Positions	Shell Size - Insert	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Cable Opening [custom]	Cable Opening [custom]	Qualification	Contact Material	Applications	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Housing Color	Note	Contact Type	Type	Contact Size

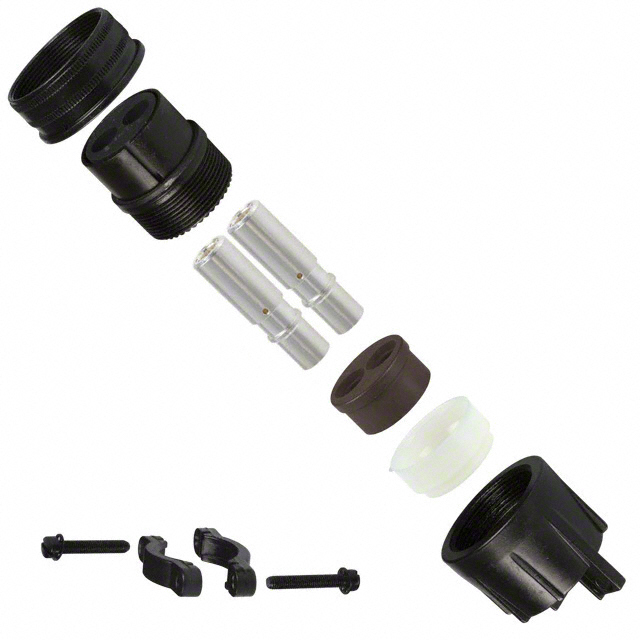

Amphenol Industrial Operations ACC06E24-9R(025)	Black	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Black Zinc Alloy	Neoprene	Silver	Female Sockets Plug	Aluminum Black Zinc Alloy	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	2	24-9	N
Amphenol Industrial Operations ACC06E24-67P-003	Olive Drab	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Olive Drab Cadmium		Silver	Male Pins Plug	Aluminum Olive Drab Cadmium	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	19		N	67	24	23.83 mm	0.938 in	MIL-5015 Derivative	Copper Alloy	Automotive Industrial
Amphenol Industrial Operations ACC06E24-28PB-025	Black	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Black Zinc Cobalt		Silver	Male Pins Plug	Aluminum Black Zinc Cobalt	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	24		N	28	24	23.83 mm	0.938 in	MIL-5015 Derivative	Copper Alloy	Automotive Industrial	Reverse Bayonet Lock
Amphenol Industrial Operations ACC06E24-9R-003	Olive Drab	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Olive Drab Cadmium	Neoprene	Silver	Female Sockets Plug	Aluminum Olive Drab Cadmium	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	2	24-9	N			23.83 mm	0.938 in		Copper Alloy	Automotive Industrial
Amphenol Industrial Operations ACC06E24-6SB-025-A24	Black	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Black Zinc Cobalt		Gold	Female Sockets Plug	Aluminum Black Zinc Cobalt	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	8	24-6	N			23.83 mm	0.938 in	MIL-5015 Derivative	Copper Alloy	Automotive Industrial	Reverse Bayonet Lock	35.4 µin	0.9 µm
Amphenol Industrial Operations ACC06E24-9R-025	Black	Metal	-55 °C	125 °C	Environment Resistant	Aluminum	Black Zinc Cobalt	Neoprene	Silver	Female Sockets Plug	Aluminum Black Zinc Cobalt	Unshielded	Backshell Cable Clamp Coupling Nut	Crimp	Free Hanging (In-Line)	2	24-9	N			23.83 mm	0.938 in		Copper Alloy	Automotive Industrial
Amphenol Industrial Operations ACC06E24-10R-025-LC			-55 °C	125 °C	Environment Resistant	Aluminum Alloy	Zinc Cobalt	Neoprene		Plug Housing		Unshielded	Cable Clamp Coupling Nut		Free Hanging (In-Line)	7		N	10	24			MIL-5015 Derivative						Circular	Black	Contacts Not Included	Crimp	For Female Sockets	8
