D15S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

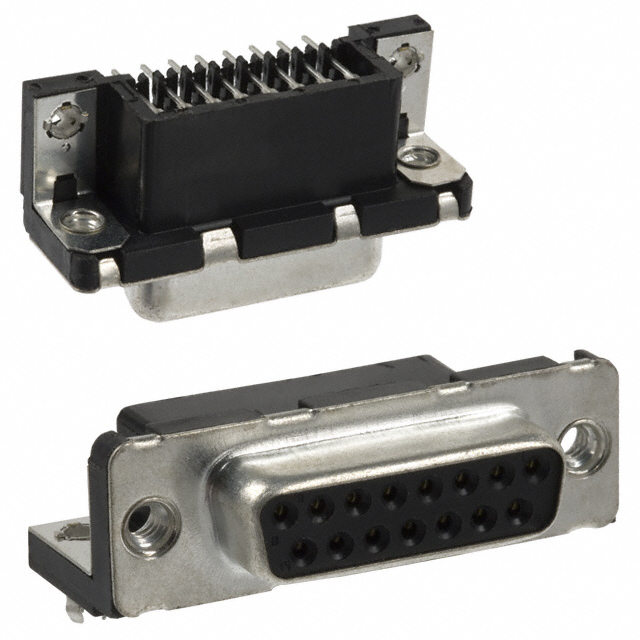

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Mounting Type | Material Flammability Rating | Number of Rows | Contact Type | Connector Style | Number of Positions | Shell Material, Finish | Voltage Rating | Connector Type | Dielectric Material | Features | Contact Material | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 2 | 0.409 in | 10.4 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | Steel Tin-Nickel Plated | 300 VDC | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | Board Lock Mounting Brackets | Phosphor Bronze | Housing/Shell (4-40) | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C | ||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Thermoplastic | Phosphor Bronze | Housing/Shell (4-40) | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | Phosphor Bronze | Housing/Shell (Unthreaded) | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Thermoplastic | Phosphor Bronze | Housing/Shell (Unthreaded) | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.4 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | Mounting Brackets | Phosphor Bronze | Housing/Shell (Unthreaded) | 5 A | Gold or Gold GXT™ | Black | Solder | -55 °C | 125 °C | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.4 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | Steel Tin-Nickel Plated | 300 VDC | Receptacle Female Sockets | Polyester | Board Lock Mounting Brackets | Brass | Female Screwlock (4-40) Mating Side | 5 A | Gold or Gold GXT™ | Black | Solder | -55 °C | 125 °C | 0.76 Ám | 30 Áin | |
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Thermoplastic | Phosphor Bronze | Housing/Shell (Unthreaded) | 5 A | Gold | Black | Solder | -55 °C | 125 °C | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.4 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Thermoplastic | Board Lock Mounting Brackets | Brass | Female Screwlock (4-40) Mating Side | 5 A | Gold | Black | Solder | -55 °C | 125 °C | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Thermoplastic | Mounting Brackets | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C | |||
Amphenol ICC (FCI) | 2 | 0.409 in | 10.39 mm | Through Hole Right Angle | UL94 V-0 | 2 | Signal | D-Sub | 15 | 300 VDC | Receptacle Female Sockets | Polyester | Board Lock Mounting Brackets | Brass | Housing/Shell (M3) | Flash | 5 A | Gold | Black | Solder | -55 °C | 125 °C |
