2238143 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

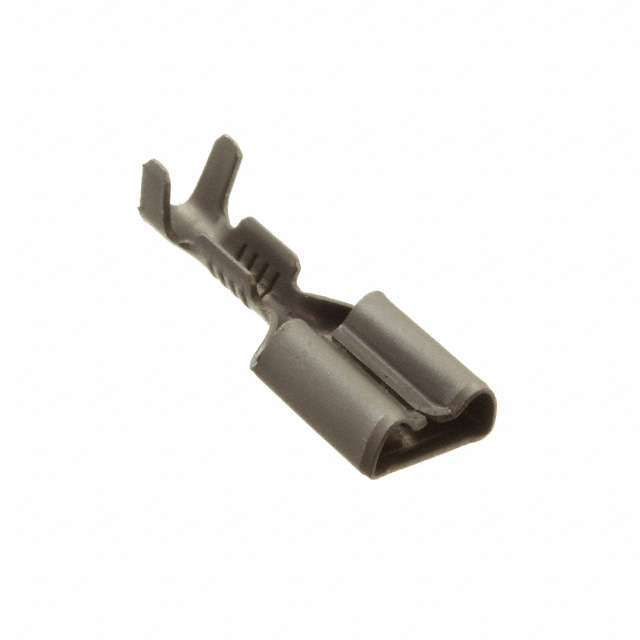

FASTON LIF 250 22-18AWG NPST (25
| Part | Gender | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness | Mounting Type | Termination | Insulation | Contact Material | Tab Length | Tab Length | Length - Overall | Length - Overall [x] | Tab Width | Tab Width | Contact Finish | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | 22 AWG | 17.5 AWG | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Crimp | Non-Insulated | Steel | 7.87 mm | 0.31 in | 19.05 mm | 0.75 in | 6.35 mm | 0.25 in | Nickel | Standard |
