R11718 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

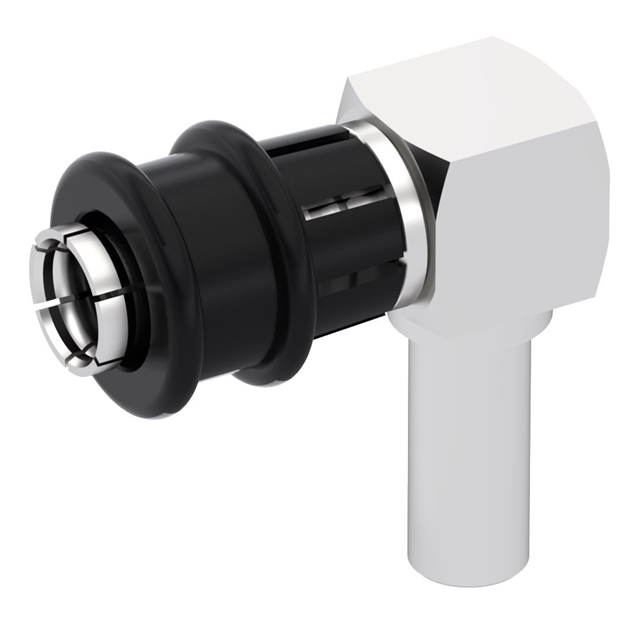

SMB / RIGHT ANGLE PLUG CRIMP TYP
| Part | Mating Cycles | Voltage Rating | Center Contact Plating | Dielectric Material | Body Finish | Body Material | Frequency - Max [Max] | Contact Termination | Center Contact Material | Impedance | Cable Group | Fastening Type | Number of Ports | Connector Type | Mounting Type | Shield Termination | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 335 V | Gold | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | 4 GHz | Crimp | Beryllium Copper | 50 Ohms | 316 RG-188 | Snap-On | 1 | Female Socket Plug | Free Hanging (In-Line) Right Angle | Crimp | SMB | Silver |
 Radiall USA, Inc. | 500 | 335 V | Gold | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | 4 GHz | Crimp | Beryllium Copper | 50 Ohms | 316 RG-188 | Snap-On | 1 | Female Socket Plug | Free Hanging (In-Line) Right Angle | Crimp | SMB | Silver |
