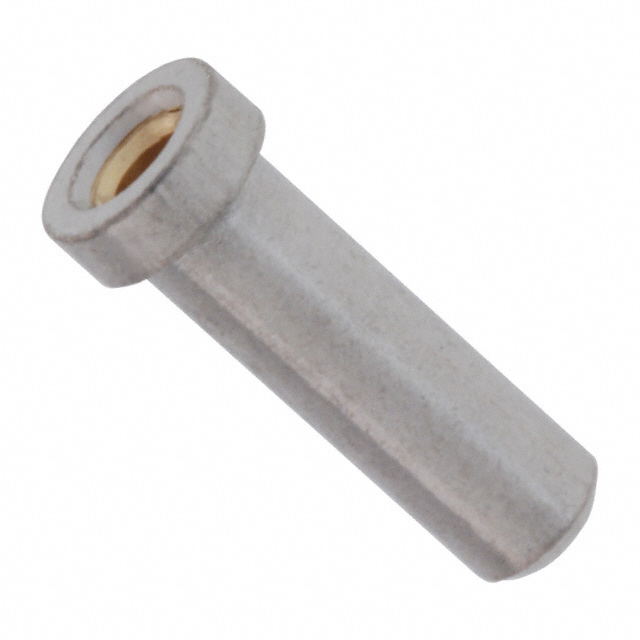

0292-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.032 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Tail Type	Contact Material	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0292-0-15-01-06-01-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Tin-Lead	0.093 in	2.36 mm	0.051 in	1.3 mm	200 Áin	5.08 Ám
Mill-Max Manufacturing Corp. 0292-0-15-80-06-14-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0292-0-15-15-06-14-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0292-0-15-01-06-14-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0292-0-15-15-06-27-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0292-0-15-80-06-27-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0292-0-15-01-06-27-10-0	-55 C	125 °C	6.35 mm	0.25 in	Solder	1.8 mm	0.071 in	0.21 in	5.33 mm	No Tail	Beryllium Copper	Gold	0.093 in	2.36 mm	0.051 in	1.3 mm	30 Áin	0.76 Ám
