68899 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

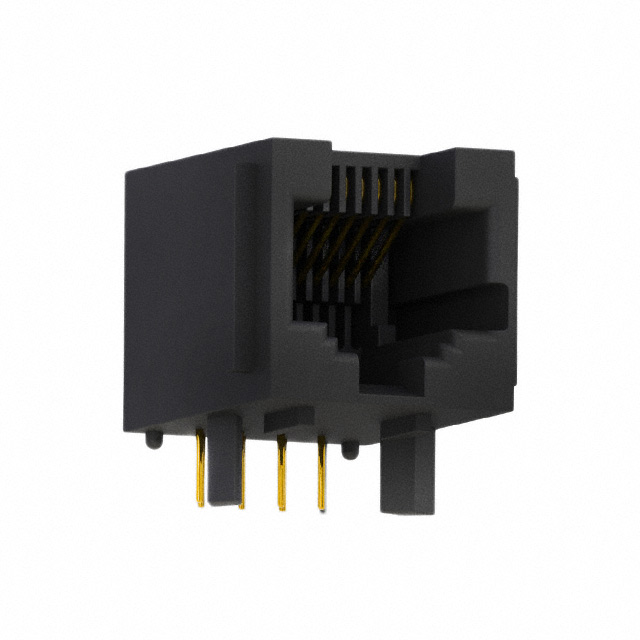

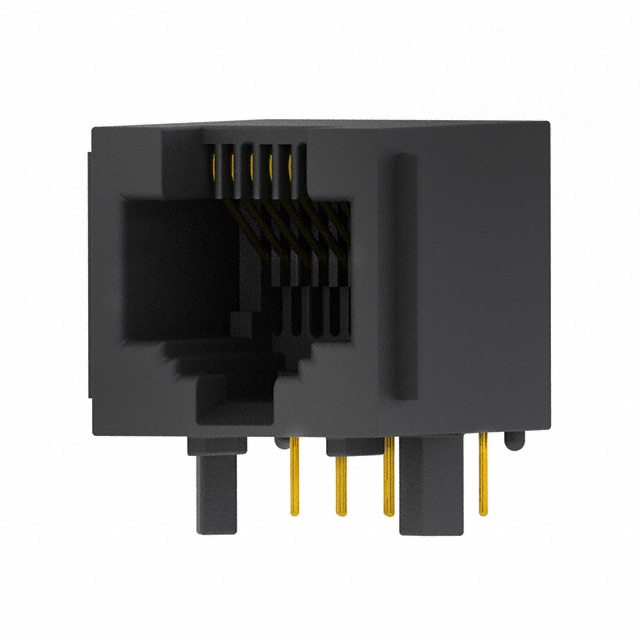

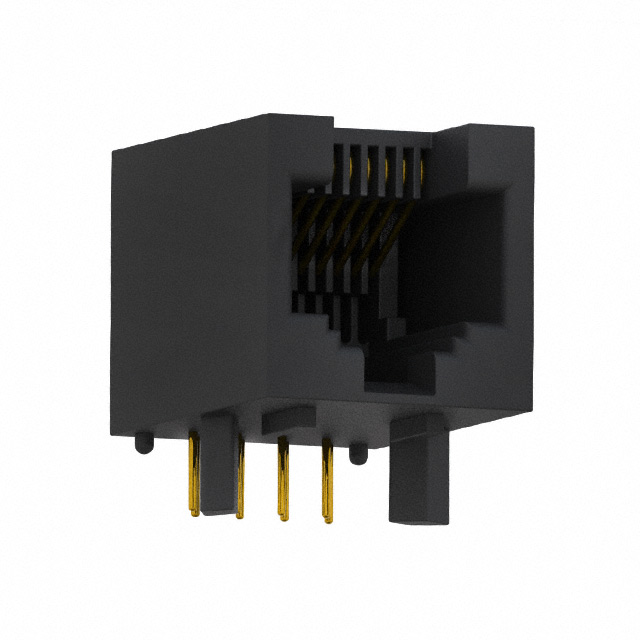

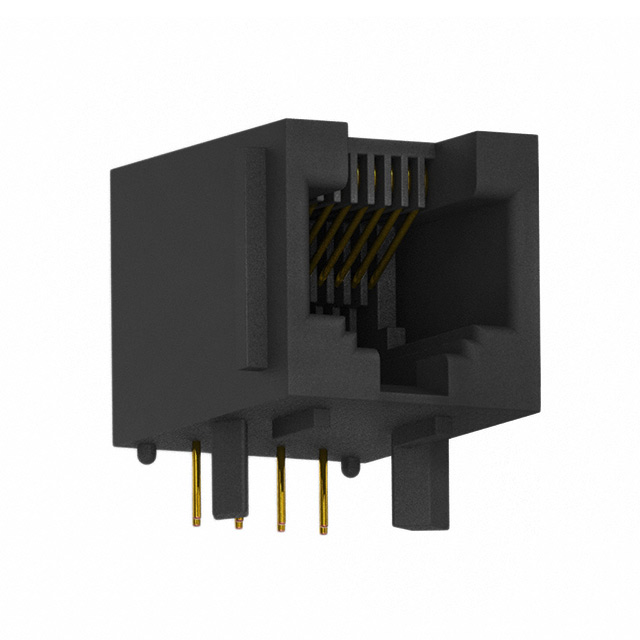

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Number of Positions/Contacts | Ratings | Housing Material | Shielding | LED Color | Contact Material | Number of Rows | Number of Ports | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Orientation | Connector Type | Mounting Type | Tab Direction | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 8p8c (RJ45 Ethernet) | Cat3 | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | Copper Alloy | 1 | 1 | Solder | 0.76 Ám | 30 Áin | Board Guide Panel Stops | 90 ° | Jack | Through Hole | Down | -40 °C | 70 °C | Gold GXT™ |
 Amphenol ICC (FCI) | 8p8c (RJ45 Ethernet) | Cat3 | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | Copper Alloy | 1 | 1 | Solder | 1.27 µm | 50 µin | Board Guide | 90 ° | Jack | Through Hole | Down | -40 °C | 70 °C | Gold GXT™ |
Amphenol ICC (FCI) | 8p8c (RJ45 Ethernet) | Cat3 | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | Copper Alloy | 1 | 1 | Solder | 0.127 µm | 5 µin | Board Guide | 90 ° | Jack | Through Hole | Down | -40 °C | 70 °C | Gold |
 Amphenol ICC (FCI) | 8p8c (RJ45 Ethernet) | Cat3 | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | Copper Alloy | 1 | 1 | Solder | 0.76 Ám | 30 Áin | Board Guide Panel Stops | 90 ° | Jack | Through Hole | Down | -40 °C | 70 °C | Gold GXT™ |
 Amphenol ICC (FCI) | 8p8c (RJ45 Ethernet) | Cat3 | Polyamide (PA) Nylon | Unshielded | Does Not Contain LED | Copper Alloy | 1 | 1 | Solder | 0.127 µm | 5 µin | Board Guide Keyed Panel Stops | 90 ° | Jack | Through Hole | Down | -40 °C | 70 °C | Gold |
