TR9KB3000 Series

Catalog

AC/DC DESKTOP ADAPTER 5.95V 18W

Part	Standard Number	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Form	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Output Connector	Region Utilized	No Load Power Consumption	Power (Watts)	Applications	Cord Length	Cord Length	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Input Type	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Polarization	Output Connector [x]	Output Connector [diameter]
GlobTek, Inc. TR9KB3000T00-IMR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	Desktop (Class II)	-20 ░C	40 °C	3 A	Barrel Plug Kit (1.3mm x 3.5mm	International	75 mW	18 W	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	IEC 320-C8	1.26 "	1.85 in	47 mm	87 mm	32 mm	3.43 "	5.95 V	Cord (Sold Separately)	Level VI

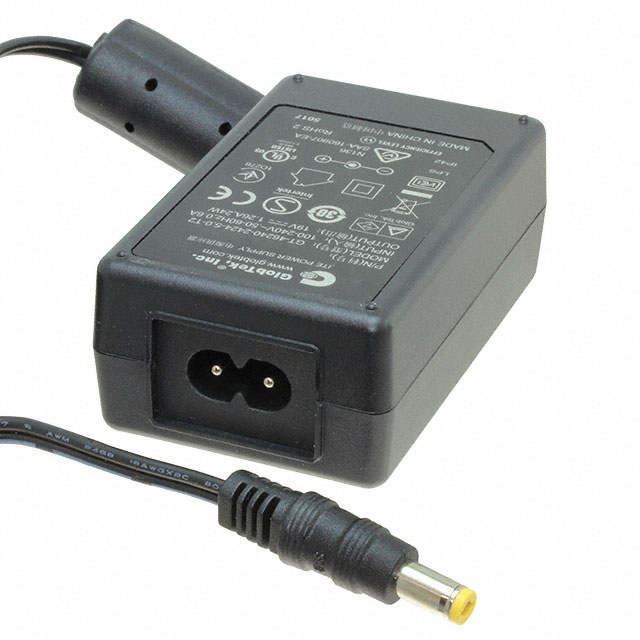

GlobTek, Inc. TR9KB3000CCP-N(R6B)	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	264 VAC	90 VAC	Desktop (Class II)	0 °C	40 °C	3 A	Barrel Plug	International	75 mW	18 W	ITE (Commercial)	1.2 m	47.2 in	IEC 320-C8	1.22 in	1.97 in		80.6 mm		3.17 in	5.95 V	Cord (Sold Separately)	Level VI	31 mm	50 mm	Positive Center	11 mm	2.1 mm 5.5 mm

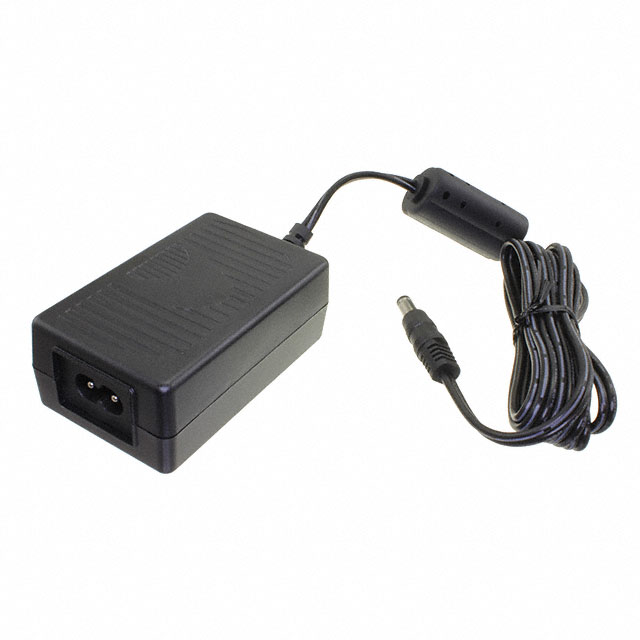

GlobTek, Inc. TR9KB3000LCP-N(R6B)	60950-1	CB CCC CE cULus EAC LPS PSE RCM S-Mark SIQ UkrSEPRO VCCI	264 VAC	90 VAC	Desktop (Class II)	0 °C	40 °C	3 A	Barrel Plug	International	75 mW	18 W	ITE (Commercial)	1.2 m	47.2 in	IEC 320-C8	1.22 in	1.97 in		80.6 mm		3.17 in	5.95 V	Cord (Sold Separately)	Level VI	31 mm	50 mm	Positive Center	11 mm	2.5 mm 5.5 mm
