CD421690 Series

Catalog

THYRISTOR / DIODE MODULE, SERIES CONNECTED, 90 A

Part	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max) [Max]	Structure	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Package / Case	Mounting Type	Current - On State (It (RMS)) (Max)
Powerex Inc. CD421690C	100 mA	-40 C	125 °C	1.6 kV	90 A	1 Diode	2000 A	141 A	Series Connection - SCR/Diode	2.5 V	100 mA	Module

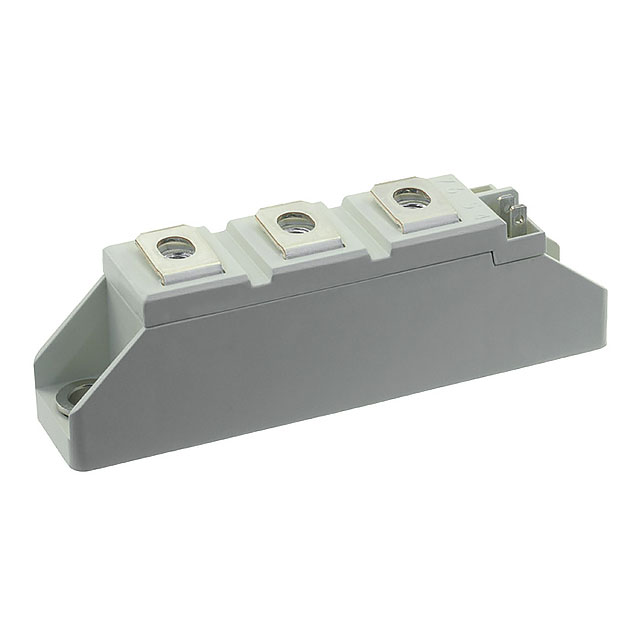

Powerex Inc. CD421690B	150 mA	-40 C	125 °C	1.6 kV	95 A	1 Diode	2000 A 2100 A		Series Connection - SCR/Diode		250 mA	POW-R-BLOK™ Module	Chassis Mount	150 A
