R12341 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

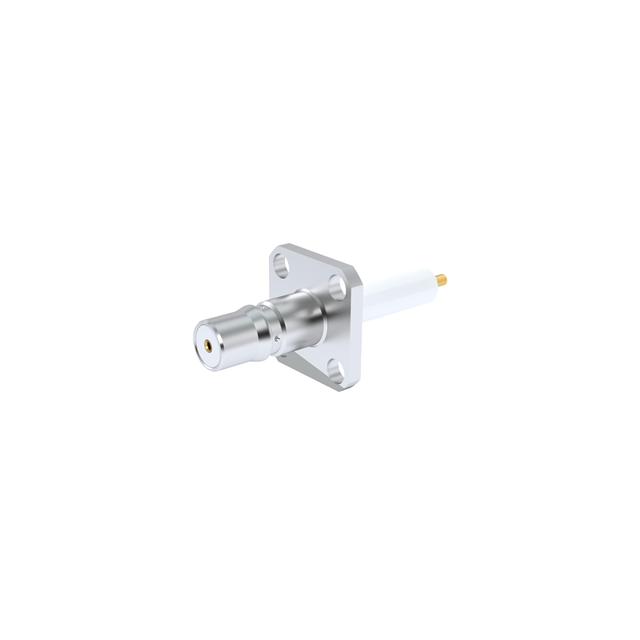

QMA / SQUARE FLANGE RECEPTACLE -
| Part | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Body Material | Connector Type | Contact Termination | Mounting Type | Frequency - Max [Max] | Center Contact Material | Features | Mounting Feature | Impedance | Fastening Type | Housing Color | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Gold | -40 C | 105 ░C | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Receptacle Female Socket | Solder | Panel Mount Through Hole | 6000 MHz | Beryllium Copper | Extended Insulation | Flange | 50 Ohms | Snap-On | Silver | 1 | Solder |
Radiall USA, Inc. | |||||||||||||||||||
 Radiall USA, Inc. | 500 V | Gold | -40 C | 105 ░C | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Receptacle Female Socket | Solder | Panel Mount Through Hole | 6000 MHz | Beryllium Copper | Extended Insulation | Flange | 50 Ohms | Snap-On | Silver | 1 | Solder |
Radiall USA, Inc. |
