9433-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

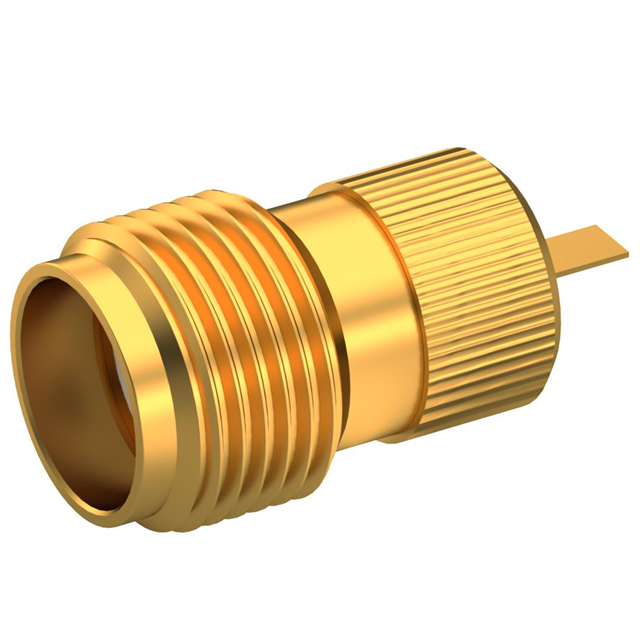

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Center Contact Plating | Body Finish | Impedance | Mounting Type | Connector Type | Number of Ports | Shield Termination | Fastening Type | Center Contact Material | Housing Color | Contact Termination | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | 500 | Gold | Gold | 50 Ohms | Free Hanging (In-Line) | Female Socket Jack | 1 | Solder | Threaded | Beryllium Copper | Gold | Solder Cup | SMA | 18 GHz |
