323762 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

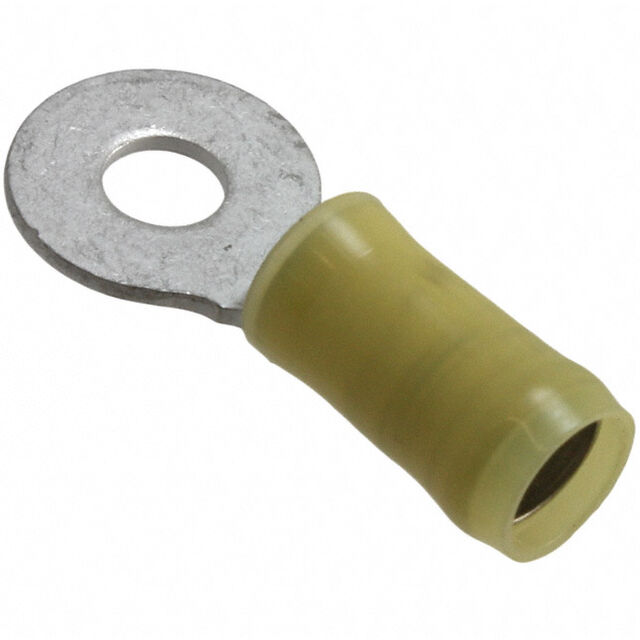

CONN RING CIRC 10-12AWG #10
| Part | Color | Contact Material | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Material - Insulation | Contact Finish | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Terminal Type | Features | Insulation | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Yellow | Copper | 0.15 " | 3.81 mm | 0.23 in | 5.84 mm | Crimp | 12 AWG | 10 AWG | Free Hanging (In-Line) | Nylon Polyamide (PA) | Tin | 0.04 in | 1.02 mm | 1.188 in | 30.18 mm | Circular | Serrated Termination | Insulated | 10 Stud | 12.7 mm | 0.5 in |
