SWI5-B Series

Wall Mount AC Adapters ac-dc, 9 Vdc, .6 A, SW, wall-plug, UK, P6 center pos plug, level VI, white

Manufacturer: CUI Inc.

Catalog

Wall Mount AC Adapters ac-dc, 9 Vdc, .6 A, SW, wall-plug, UK, P6 center pos plug, level VI, white

Part	Standard Number	Region Utilized	Input Type	Form	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	No Load Power Consumption	Voltage - Output	Applications	Cord Length	Cord Length	Efficiency	Operating Temperature [Max]	Polarization	Power (Watts)	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [diameter]	Output Connector	Output Connector [z]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [x]
CUI Inc. SWI5-5B-B-P6R	62368-1	United Kingdom	Fixed Blade	Wall Mount (Class I)	67 mm	2.55 in	49.6 mm	64.8 mm	2.64 "	1.95 in	1.2 A	75 mW	5 V	ITE (Commercial)	1.5 m	59 in	Level VI	40 °C	Positive Center	6 W	BS 1363	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm
CUI Inc. SWI5-9-B-P5R	62368-1	United Kingdom	Fixed Blade	Wall Mount (Class I)	67 mm	2.55 in	49.6 mm	64.8 mm	2.64 "	1.95 in	600 mA	75 mW	9 V	ITE (Commercial)	1.5 m	59 in	Level VI	40 °C	Positive Center	5.4 Watts	BS 1363	264 VAC	90 VAC		Barrel Plug R/A		9.5 mm	5.5 mm	2.1 mm

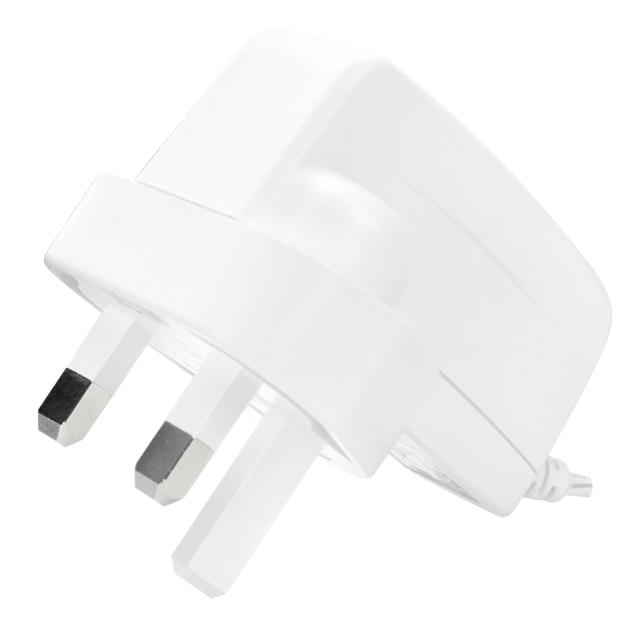

CUI Inc. SWI5-9-BW-P6	62368-1	United Kingdom	Fixed Blade	Wall Mount (Class I)	67 mm	2.55 in	49.6 mm	64.8 mm	2.64 "	1.95 in	600 mA	75 mW	9 V	ITE (Commercial)	1.5 m	59 in	Level VI	40 °C	Positive Center	5.4 Watts	BS 1363	264 VAC	90 VAC	2.5 mm 5.5 mm	Barrel Plug					9.5 mm
CUI Inc. SWI5-12-B-P5	62368-1	United Kingdom	Fixed Blade	Wall Mount (Class I)	67 mm	2.55 in	49.6 mm	64.8 mm	2.64 "	1.95 in	500 mA	75 mW	12 V	ITE (Commercial)	1.5 m	59 in	Level VI	40 °C	Positive Center	6 W	BS 1363	264 VAC	90 VAC	2.1 mm 5.5 mm	Barrel Plug					9.5 mm
