5972601 Series

Manufacturer: DIALIGHT

Catalog

LED BLUE CLEAR 1616 SMD R/A

Part	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Supplier Device Package	Viewing Angle	Lens Style	Wavelength - Peak	Lens Color	Package / Case	Mounting Type	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Size [diameter]	Configuration	Lens Transparency	Color	Current - Test	Height (Max) [z]	Lens Size [y]	Lens Size [x]
DIALIGHT 5972601817F	4.2 mm	3.8 mm	470 nm	1616	120 °	Round with Flat Top	465 nm	Colorless	2-SMD Boomerang	Right Angle Surface Mount	4.2 mm	3.6 V	157 mcd	2.4 mm Dia	Standard	Clear	Blue	20 mA

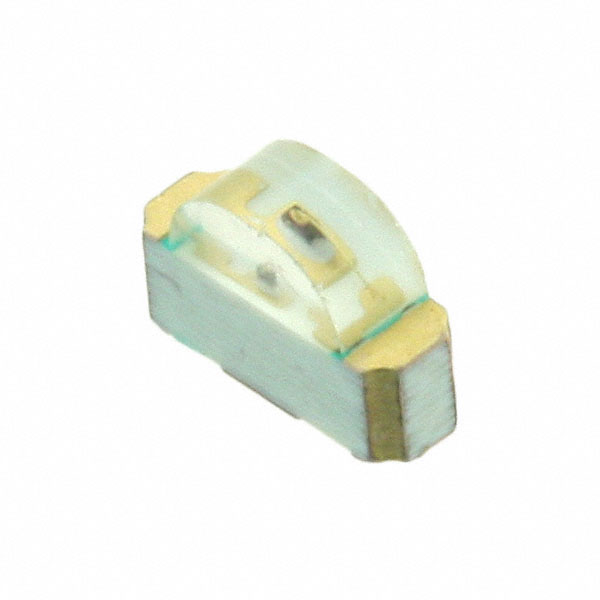

DIALIGHT 5972601607F	3 mm	2 mm	525 nm	1208	130 °	Rectangle with Domed Top	525 nm	Colorless	2-SMD No Lead	Right Angle Surface Mount		3.2 V	195 mcd		Standard	Clear	Green	20 mA	1 mm	1 mm	2 mm
