HT 3/16 Series

Catalog

SPIRAL WRAP 0.127" X 100' NAT

Part	Color	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Wall Thickness [custom]	Wall Thickness	Diameter - Inside, Non-Expanded	Diameter - Inside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Abrasion Protection	Features	Type	Heat Protection	Environment Protection [custom]	Material Flammability Rating	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]

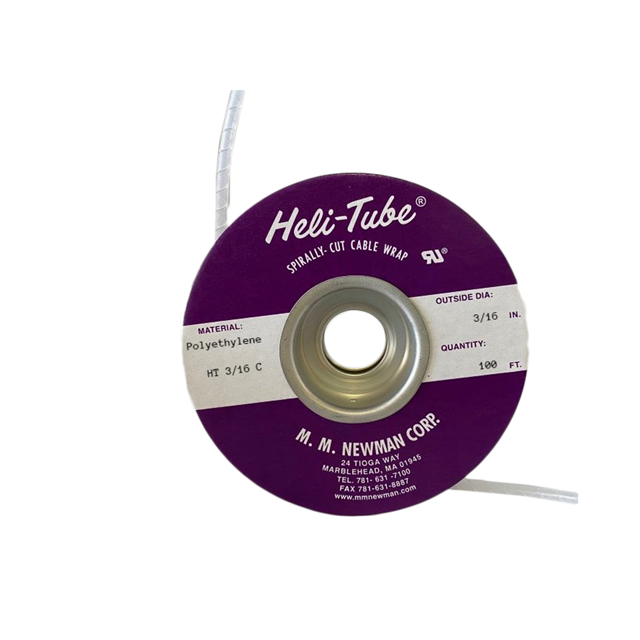

MM Newman Corporation HT 3/16 C	Natural	Harness	1.5 in	38.1 mm	Polyethylene (PE)	100 '	30.48 m	88 °C	-60 °C	0.03 "	0.76 mm	3.23 mm	0.127 in	0.187 in	4.75 mm	Abrasion Resistant	Chemical Resistant Solvent Resistant	Spiral Wrap
MM Newman Corporation HT 3/16 T	Natural	Harness	1.5 in	38.1 mm	Polytetrafluoroethylene (PTFE)	100 '	30.48 m	260 °C	-268 °C	0.03 "	0.76 mm	3.23 mm	0.127 in	0.188 in	4.78 mm	Abrasion Resistant	Chemical Resistant Solvent Resistant	Spiral Wrap	Fire Resistant	UV Resistant	UL VW-1 UL94 V-0
MM Newman Corporation HT 3/16 R	White	Harness	1.5 in	38.1 mm	Polyethylene (PE)	100 '	30.48 m	80 °C	-20 ░C		1.02 mm		0.107 in	0.188 in	4.78 mm	Abrasion Resistant	Chemical Resistant Solvent Resistant	Spiral Wrap	Fire Resistant		UL1441 UL94 V-2	0.04 in	2.72 mm

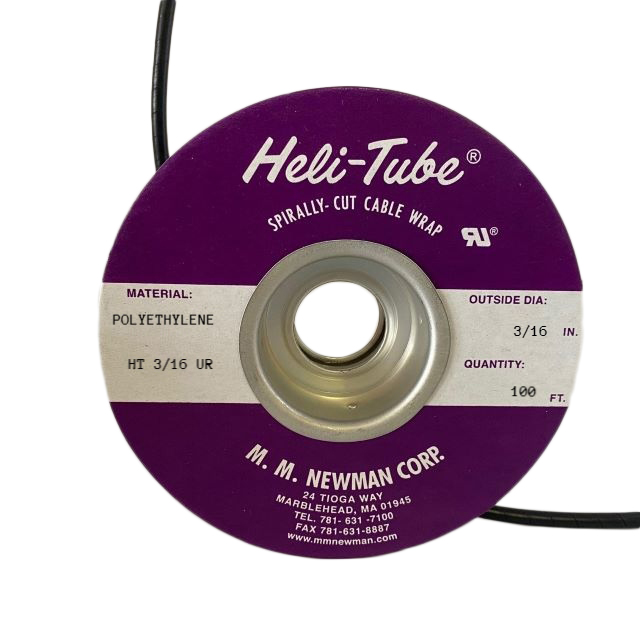

MM Newman Corporation HT 3/16 UR	Black	Harness	1.5 in	38.1 mm	Polyethylene (PE)	100 '	30.48 m	88 °C	-60 °C	0.03 "	0.76 mm	3.23 mm	0.127 in	0.188 in	4.78 mm	Abrasion Resistant	Chemical Resistant Solvent Resistant	Spiral Wrap
MM Newman Corporation HT 3/16 N-B	Black	Harness	1.5 in	38.1 mm	Nylon	100 '	30.48 m	121 C	-40 C		0.51 mm		0.147 in	0.188 in	4.78 mm	Abrasion Resistant	Chemical Resistant Self Extinguishing Solvent Resistant	Spiral Wrap		UV Resistant		0.02 in	3.73 mm
MM Newman Corporation HT 3/16 N	Natural	Harness	1.5 in	38.1 mm	Nylon	100 '	30.48 m	121 C	-40 C		0.51 mm		0.147 in	0.188 in	4.78 mm	Abrasion Resistant	Chemical Resistant Self Extinguishing Solvent Resistant	Spiral Wrap				0.02 in	3.73 mm
