ZW10F Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

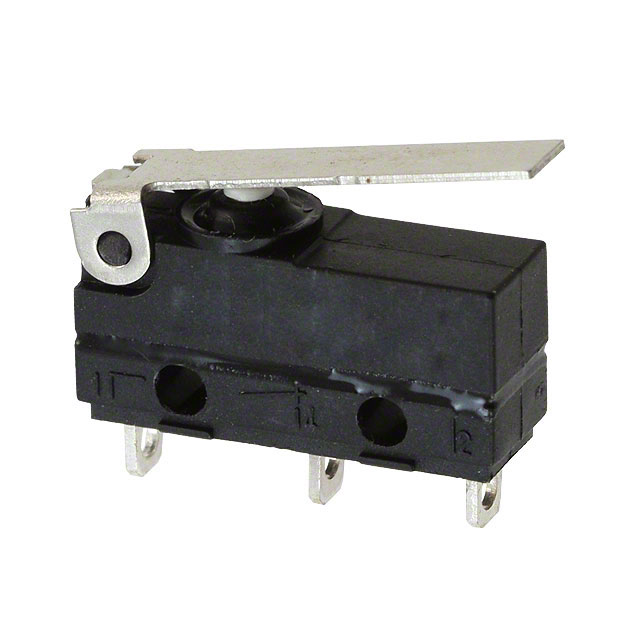

SWITCH SNAP ACT SPDT 100MA 125V
| Part | Voltage Rating - AC | Electrical Life | Overtravel [custom] | Overtravel [custom] | Ingress Protection | Circuit | Termination Style | Mounting Type | Actuator Type | Switch Function | Operating Force | Mechanical Life | Current Rating (Amps) | Release Force | Operating Position | Operating Position | Pretravel | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 V | 10000 Cycles | 1 mm | 0.039 " | IP00 | SPDT | Solder Lug | Chassis Mount | Lever Straight | On-Mom | 66 gf | 1000000 Cycles | 100 mA | 13 gf | 0.345 in | 8.8 mm | 4.8 mm | 0.188 in | 120 °C | -40 C | 0.028 in | 0.7 mm |
