TX18AB00 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BCKSH ADPT SZ14 14S 3/4-20

Part	Includes	For Use With/Related Products	Features	Plating	Shell Size - Insert	Material	Thread Size	Type	Shielding	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Exit	Shell Size - Insert	Shell Size - Insert [custom]	Diameter - Outside	Diameter - Outside	Shell Size - Insert [custom]
TE Connectivity AMP Connectors TX18AB00-1404	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium	14 14S	Aluminum Alloy	3/4-20 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	27.69 mm	1.09 in	180 °
TE Connectivity AMP Connectors TX18AB00B2008	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	1 1/8-18 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	37.59 mm	1.48 in	180 °	20
TE Connectivity AMP Connectors TX18AB00-2824	1 Screw 2 O-Rings 2 pc Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	1 5/8-18 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	48.6 mm	1.913 in	180 °		28
TE Connectivity AMP Connectors TX18AB00-2812	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	1 5/8-18 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	48.6 mm	1.913 in	180 °		28
TE Connectivity AMP Connectors TX18AB00C2016	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	1 1/8-18 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	37.59 mm	1.48 in	180 °	20
TE Connectivity AMP Connectors TX18AB00C3222	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	1 7/8-16 UN	Backshell Heat Shrink Adapter	Unshielded	Olive Drab			180 °	32		2.161 in	54.9 mm
TE Connectivity AMP Connectors TX18AB00-1610	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	7/8-20 UNEF	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	31.1 mm	1.224 in	180 °

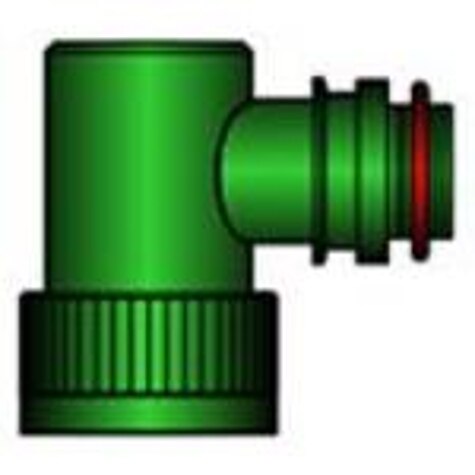

TE Connectivity AMP Connectors TX18AB00B3614	1 O-Ring 2 Screws 4 pcs - 1 Backshell	Bendix 10-214 Cannon CA-RX E MIL-DTL-5015D Class A R Connectors	Tinel Lock	Cadmium		Aluminum Alloy	2 1/16-16 UNS	Backshell Heat Shrink Adapter	Unshielded	Olive Drab	64.6 mm	2.543 in	180 °					36
