S9B-XH-A Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

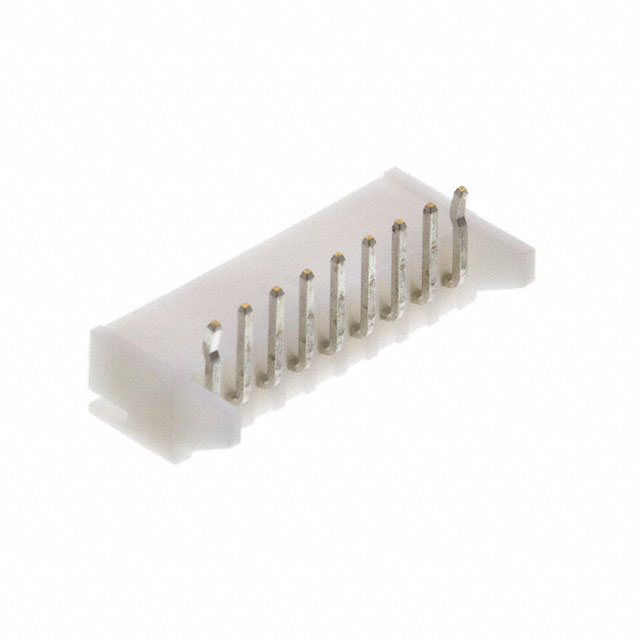

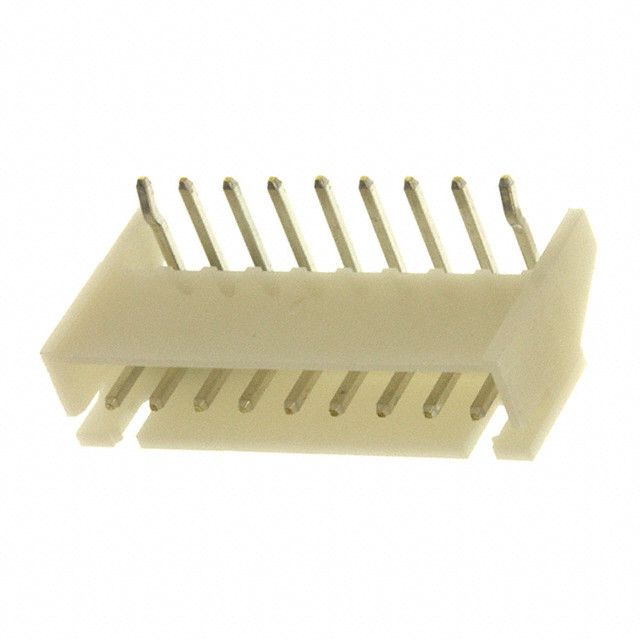

CONN HEADER R/A 9POS 2.5MM
| Part | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Shrouding | Insulation Material | Style | Number of Rows | Contact Length - Post [x] | Contact Length - Post | Contact Finish - Post | Termination | Number of Positions | Contact Shape | Voltage Rating | Current Rating (Amps) | Insulation Color | Contact Material | Pitch - Mating | Pitch - Mating | Connector Type | Fastening Type | Mounting Type | Number of Positions Loaded | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 6.1 mm | 0.24 in | 85 °C | -25 °C | UL94 V-0 | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | 1 | 0.134 " | 3.4 mm | Tin | Press-Fit Solder | 9 | Square | 250 V | 3 A | Natural | Brass | 2.5 mm | 0.098 in | Header | Detent Lock | Right Angle Through Hole | All | Male Pin |
 JST Sales America Inc. | 6.1 mm | 0.24 in | 85 °C | -25 °C | UL94 V-0 | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | 1 | 0.134 " | 3.4 mm | Tin | Press-Fit Solder | 9 | Square | 250 V | 3 A | Natural | Brass | 2.5 mm | 0.098 in | Header | Detent Lock | Right Angle Through Hole | All | Male Pin |
