TS5A6542 Series

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with input logic translation

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with input logic translation

Part	Current - Leakage (IS(off)) (Max)	Package / Case	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Switch Circuit	On-State Resistance (Max) [Max]	Mounting Type	Multiplexer/Demultiplexer Circuit	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Channel-to-Channel Matching (ΔRon)	-3db Bandwidth	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Supplier Device Package	Charge Injection

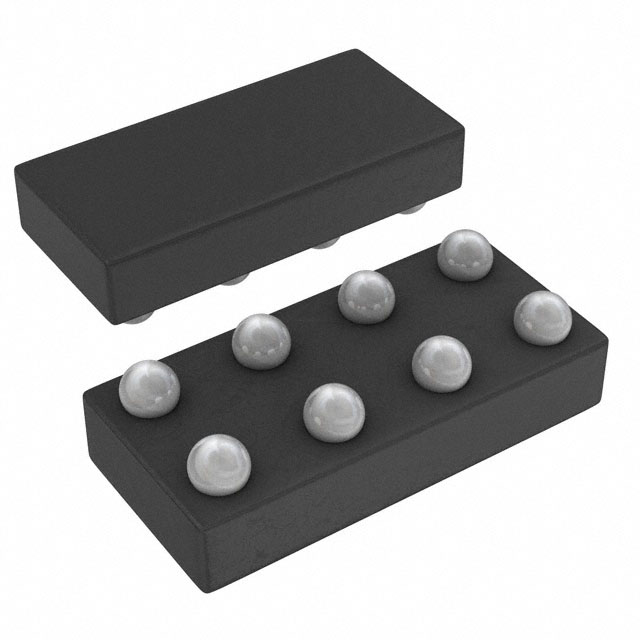

Texas Instruments TS5A6542YZPR	20 nA	8-XFBGA DSBGA	5.5 V	2.25 V	20 ns	25 ns	-63 dB	SPDT	750 mOhm	Surface Mount	2:1	1	85 C	-40 ¯C	50 mOhm	43 MHz	37 pF	37 pF	8-DSBGA	15 pC

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with input logic translation

Description

The TS5A6542 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distorion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The TS5A6542 has a separate logic supply pin (VIO) that is characterized to operate from 1.65 V to 1.95 V. VIOpowers the control circuitry, which allows the TS5A6542 to be controlled by 1.8-V signals. The TS5A6542 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distorion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The TS5A6542 has a separate logic supply pin (VIO) that is characterized to operate from 1.65 V to 1.95 V. VIOpowers the control circuitry, which allows the TS5A6542 to be controlled by 1.8-V signals.
