M4702 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

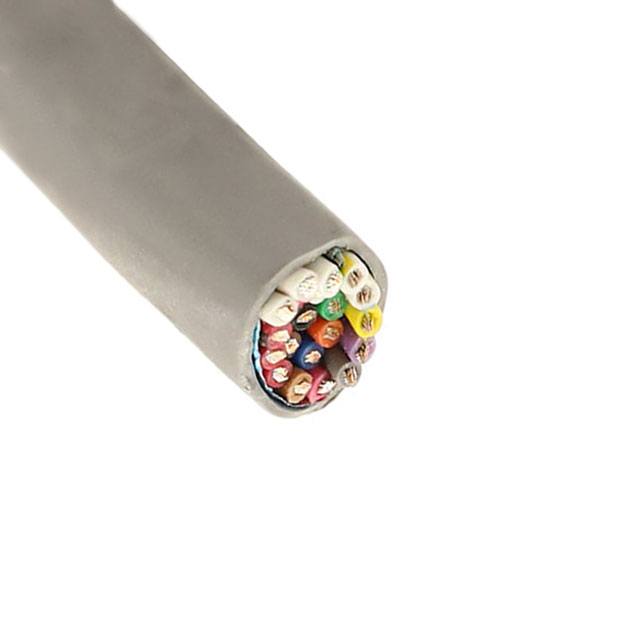

CABLE 20COND 18AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Material | Cable Type | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Insulation | Shield Type | Number of Conductors | Length | Length | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 300 VDC | Copper Tinned | Multi-Conductor | UL Style 2464 | 80 °C | -20 ░C | Slate | Poly-Vinyl Chloride (PVC) | Foil | 20 | 152.4 m | 500 ft | Drain Wire Rip Cord | 12.32 mm | 0.485 in | 18 AWG | 0.813 mm | 0.032 in |
ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 300 VDC | Copper Tinned | Multi-Conductor | UL Style 2464 | 80 °C | -20 ░C | Slate | Poly-Vinyl Chloride (PVC) | Foil | 20 | 304.8 m | 1000 ft | Drain Wire Rip Cord | 12.32 mm | 0.485 in | 18 AWG | 0.813 mm | 0.032 in |
