002250 Series

Manufacturer: Molex

Catalog

CONN RCPT 3POS IDC 24-26AWG TIN

Part	Wire Type	Contact Finish	Color	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Number of Rows	Cable Termination	Pitch	Pitch	Features	Number of Positions
Molex 0022503035	Discrete	Tin	Natural	Free Hanging (In-Line)	24 AWG	26 AWG	2.54 µm	100 µin	Receptacle	Female Socket	1	IDC	0.1 "	2.54 mm	Feed Through
Molex 0022503085	Discrete	Tin	Green	Free Hanging (In-Line)	24 AWG	26 AWG	2.54 µm	100 µin	Receptacle	Female Socket	1	IDC	0.1 "	2.54 mm	Feed Through	8

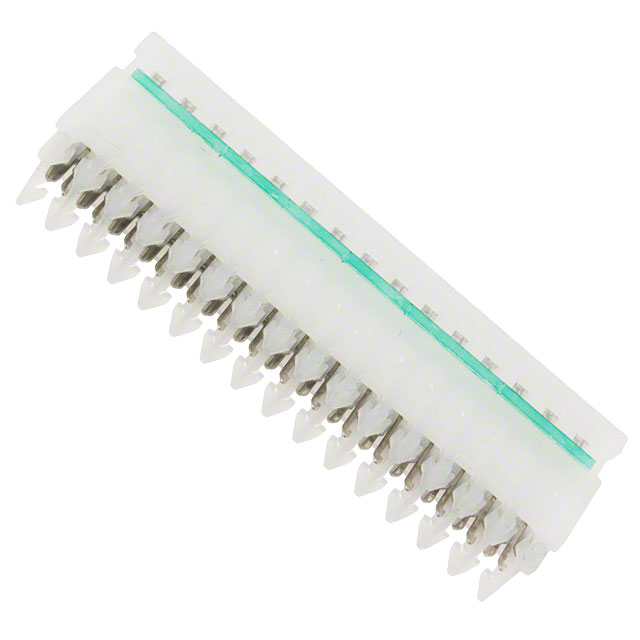

Molex 0022503155	Discrete	Tin	Natural	Free Hanging (In-Line)	24 AWG	26 AWG	2.54 µm	100 µin	Receptacle	Female Socket	1	IDC	0.1 "	2.54 mm	Feed Through	15

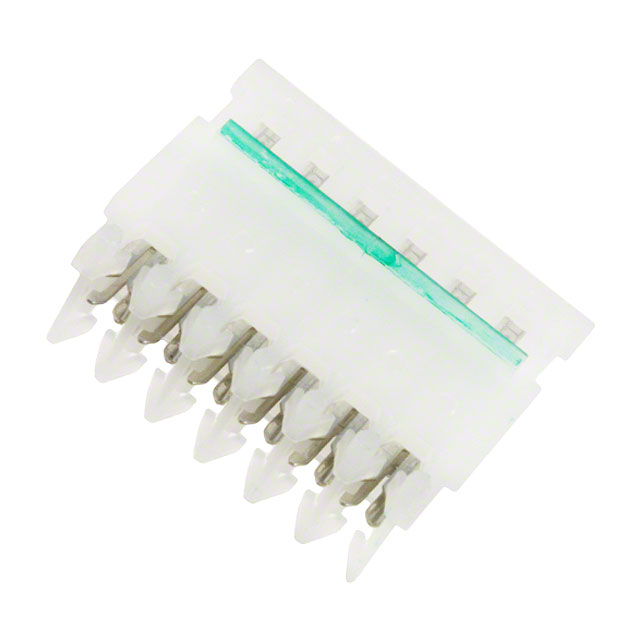

Molex 0022503065	Discrete	Tin	Natural	Free Hanging (In-Line)	24 AWG	26 AWG	2.54 µm	100 µin	Receptacle	Female Socket	1	IDC	0.1 "	2.54 mm	Feed Through	6
