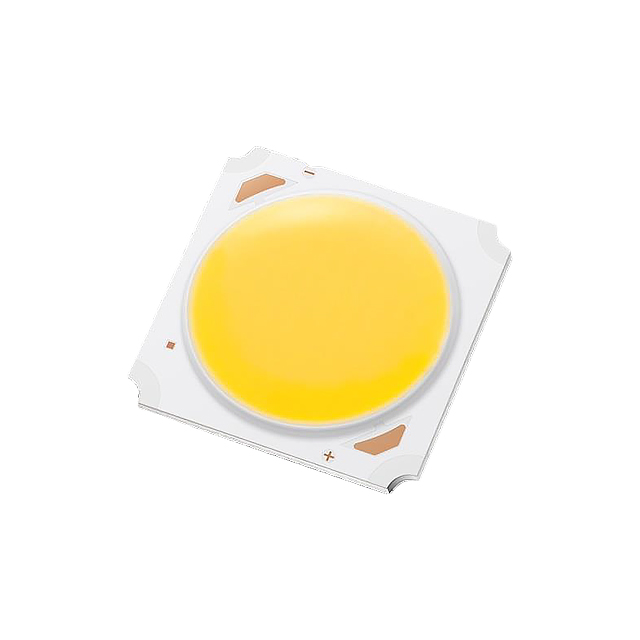

SPHCW1 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED COB LC013B COOL WHT SQ 5000K

Part	Configuration	Current - Test	Temperature - Test	Viewing Angle	Lens Type	Height [z]	CRI (Color Rendering Index)	Color	Type	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Samsung Semiconductor, Inc. SPHCW1HDNA25YHR31E	Square	360 mA	25 °C	115 °	Flat	1.6 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1920 lm	35.5 V	660 mA	150 lm/W	11 mm
Samsung Semiconductor, Inc. SPHCW1HDN945YHR3B3	Square	240 mA	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	1410 lm	35.5 V	430 mA	165 lm/W	8 mm	13.5 mm	13.5 mm	1268 lm	1552 lm
Samsung Semiconductor, Inc. SPHCW1HDNE25YHR34H	Square	1.08 A	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	5888 lm	35.5 V	1.9 A	154 lm/W	17 mm	21.5 mm	21.5 mm	5690 lm	6085 lm
Samsung Semiconductor, Inc. SPHCW1HDNC25YHQT2G	Square	720 mA	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5700 K		4050 lm	35.5 V	1.3 A	158 lm/W	17 mm	21.5 mm	21.5 mm	3820 lm	4280 lm
Samsung Semiconductor, Inc. SPHCW1HDNA25YHR3B3	Square	360 mA	25 °C	115 °	Flat	1.6 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	2000 lm	35.5 V	660 mA	156 lm/W	11 mm
Samsung Semiconductor, Inc. SPHCW1HDN825YHRTEE	Square	180 mA	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5000 K		949 lm	35.5 V	320 mA	149 lm/W	8 mm	13.5 mm	13.5 mm	887 lm	1011 lm
Samsung Semiconductor, Inc. SPHCW1HDNC25YHR32H	Square	720 mA	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse		35.5 V	1.3 A	163 lm/W	17 mm	21.5 mm	21.5 mm
Samsung Semiconductor, Inc. SPHCW1HDND25YHQT3H	Square	900 mA	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5700 K		4949 lm	35.5 V	1.62 A	155 lm/W	17 mm	21.5 mm	21.5 mm	4792 lm	5105 lm
Samsung Semiconductor, Inc. SPHCW1HDN825YHR3ED	Square	180 mA	25 °C		Flat	1.6 mm	80	Cool White	Chip On Board (COB)	5000 K	3-Step MacAdam Ellipse	907 lm	35.5 V	330 mA	142 lm/W	8 mm	13.5 mm	13.5 mm
Samsung Semiconductor, Inc. SPHCW1HDNE25YHQT4H	Square	1.08 A	25 °C	115 °	Flat	1.5 mm	80	Cool White	Chip On Board (COB)	5700 K		5888 lm	35.5 V	1.9 A	154 lm/W	17 mm	21.5 mm	21.5 mm	5690 lm	6085 lm
