68655 Series

Catalog

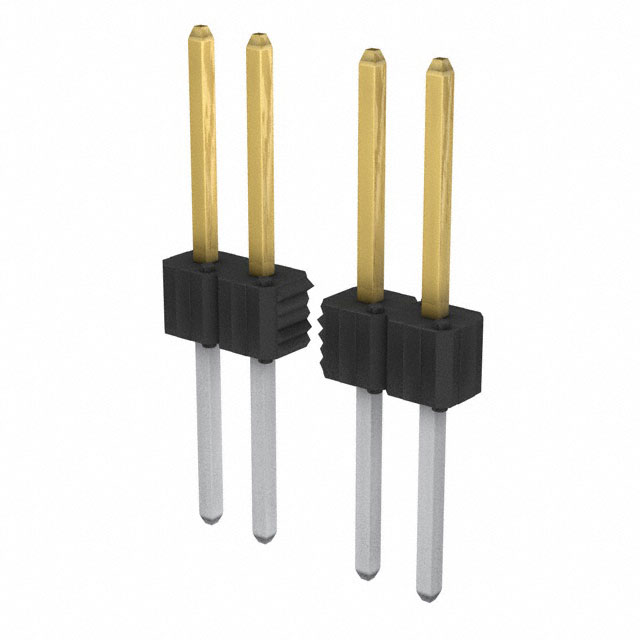

BERGSTIK II .100CC DR ST RAIGHT

Part	Insulation Color	Number of Rows	Contact Shape	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Height	Insulation Height	Contact Type	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 68655-403HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole	Tin	2.54 çm	100 çin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin
Amphenol ICC (FCI) 68655-636	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm		Through Hole		0.76 Ám	30 Áin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm			Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	36
Amphenol ICC (FCI) 68655-136	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole		0.76 Ám	30 Áin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	36
Amphenol ICC (FCI) 68655-407HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole	Tin	2.54 çm	100 çin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin		7
Amphenol ICC (FCI) 68655-114HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole		0.76 Ám	30 Áin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	14
Amphenol ICC (FCI) 68655-409HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole	Tin	2.54 çm	100 çin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin		9
Amphenol ICC (FCI) 68655-220	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole		0.38 µm	15 µin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	20
Amphenol ICC (FCI) 68655-101HLF	Black	1	Square	Unshrouded	All			3 A	Through Hole		0.76 Ám	30 Áin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	1
Amphenol ICC (FCI) 68655-420HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole	Tin	2.54 çm	100 çin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin		20
Amphenol ICC (FCI) 68655-122HLF	Black	1	Square	Unshrouded	All	0.1 in	2.54 mm	3 A	Through Hole		0.76 Ám	30 Áin	Push-Pull	Solder	0.29 "	7.37 mm	UL94 V-0	0.318 "	8.08 mm	Header	0.708 in	17.98 mm	125 °C	-65 ░C	Phosphor Bronze	0.1 in	2.54 mm	Male Pin	Gold or Gold GXT™	22 positions
